Components [03/2017 - 06/2017]
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CUSHION ASSEMBLY |
| *3 | REAR SEAT CUSHION LOCK HOOK | - | - |
| • | Non-reusable part | - | - |

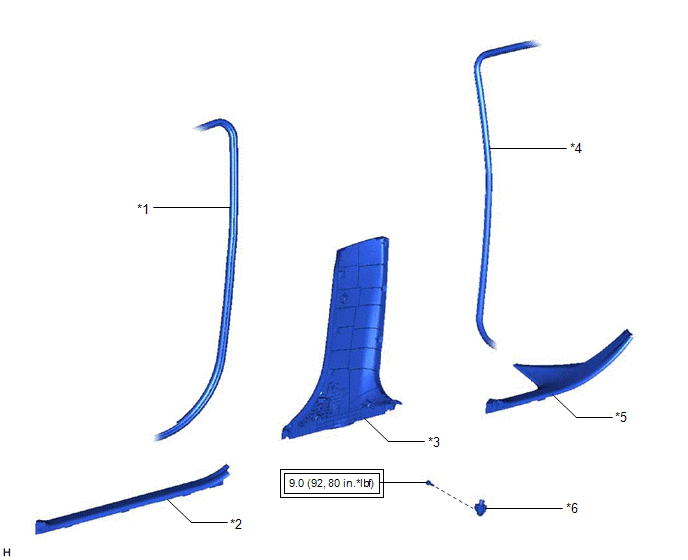

Fig 2: Side Airbag Sensor (For Center Pillar) Replacement Components With Torque Specifications [03/2017 - 06/2017] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | FRONT DOOR OPENING TRIM WEATHERSTRIP | *2 | FRONT DOOR SCUFF PLATE |
| *3 | LOWER CENTER PILLAR GARNISH | *4 | REAR DOOR OPENING TRIM WEATHERSTRIP |
| *5 | REAR DOOR SCUFF PLATE | *6 | SIDE NO. 1 AIRBAG SENSOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
