Components [06/2017 - ]

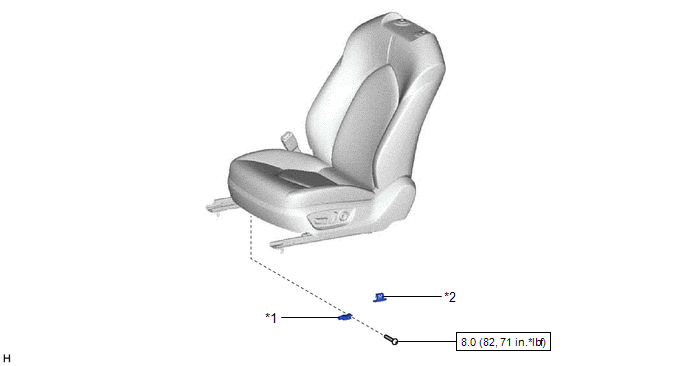

Fig 1: Seat Position Sensor (For TMMK Made) Replacement Components With Torque Specifications
GTY773191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 SEAT POSITION AIRBAG SENSOR *2 SEAT SLIDE POSITION SENSOR PROTECTOR
N*m (kgf*cm, ft.*lbf): Specified torque - -
