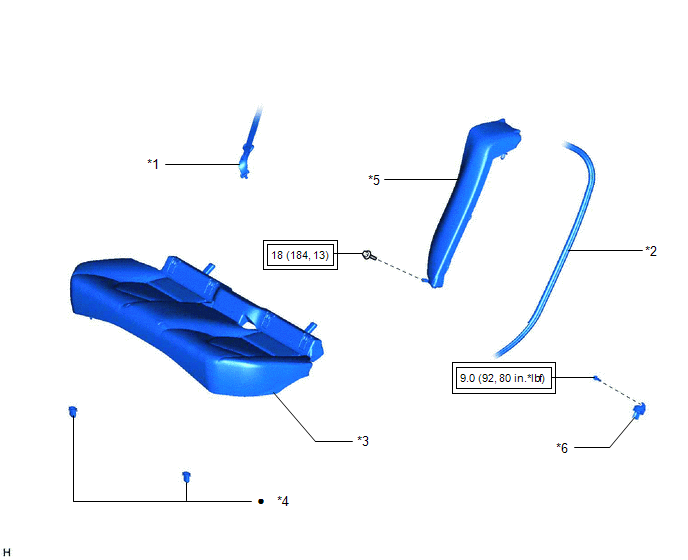

Components [03/2017 - 06/2017]
| Callout | Description | Callout | Description |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SIDE SEATBACK ASSEMBLY | *6 | SIDE NO. 2 AIRBAG SENSOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
