Components [06/2017 - 09/2019]

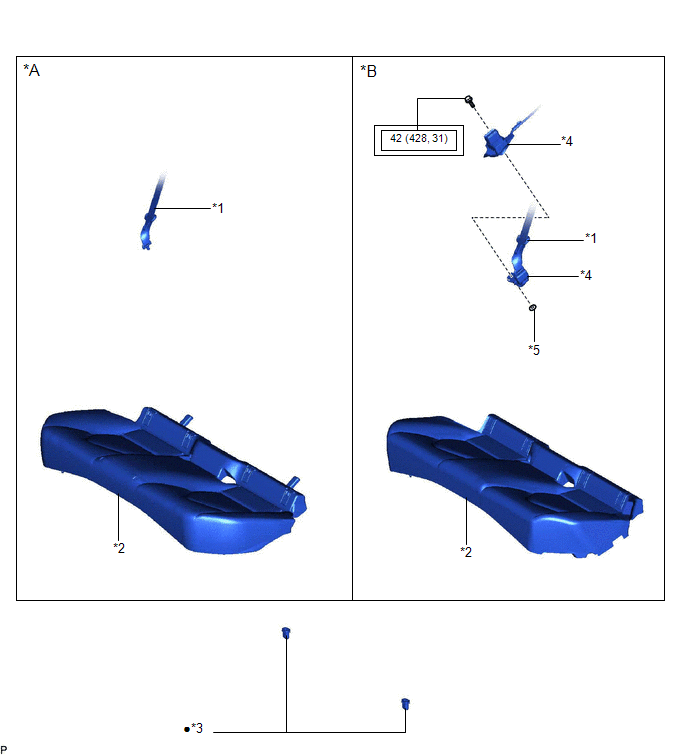

Fig 1: Center Airbag Sensor Assembly Replacement Components With Torque Specifications [06/2017 - 09/2019] (1 Of 5)
| Callout | Description | Callout | Description |
| *A | for TMC Made | *B | for TMMK Made |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CUSHION ASSEMBLY |
| *3 | REAR SEAT CUSHION LOCK HOOK | *4 | REAR SEAT INNER BELT ASSEMBLY RH |
| *5 | WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | LOWER CENTER PILLAR GARNISH LH |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *7 | REAR DOOR SCUFF PLATE LH | - | - |
| *1 | COWL SIDE TRIM SUB-ASSEMBLY RH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | LOWER CENTER PILLAR GARNISH RH |
| *5 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *7 | REAR DOOR SCUFF PLATE RH | - | - |

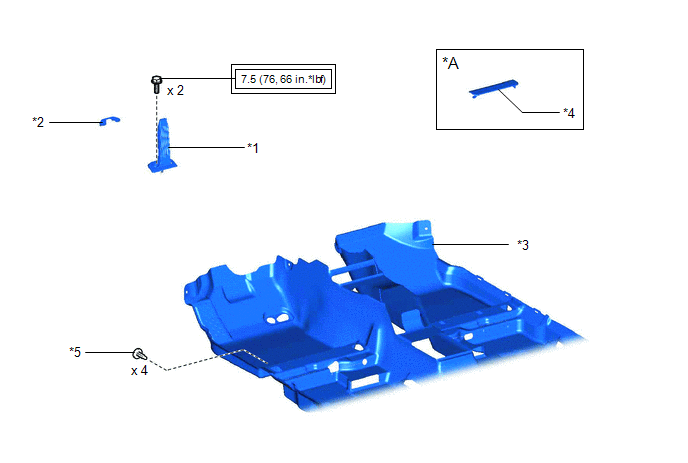

Fig 4: Center Airbag Sensor Assembly Replacement Components With Torque Specifications [06/2017 - 09/2019] (4 Of 5)
| Callout | Description | Callout | Description |
| *A | for TMC Made | - | - |
| *1 | ACCELERATOR PEDAL | *2 | ACCELERATOR PEDAL PAD |
| *3 | FRONT FLOOR CARPET ASSEMBLY | *4 | FRONT FLOOR CAUTION PLATE COVER |
| *5 | FRONT FLOOR CARPET CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
Fig 5: Center Airbag Sensor Assembly Replacement Components With Torque Specifications [06/2017 - 09/2019] (5 Of 5)
| Callout | Description | Callout | Description |
| *A | for Dual Type | - | - |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | NO. 1 CONSOLE BOX DUCT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
