Supplemental Restraint System - Service Information (1 Of 2) (Except Hybrid)
>>
Spiral Cable
>>
Components [03/2017 - 03/2020]
Components [03/2017 - 03/2020]

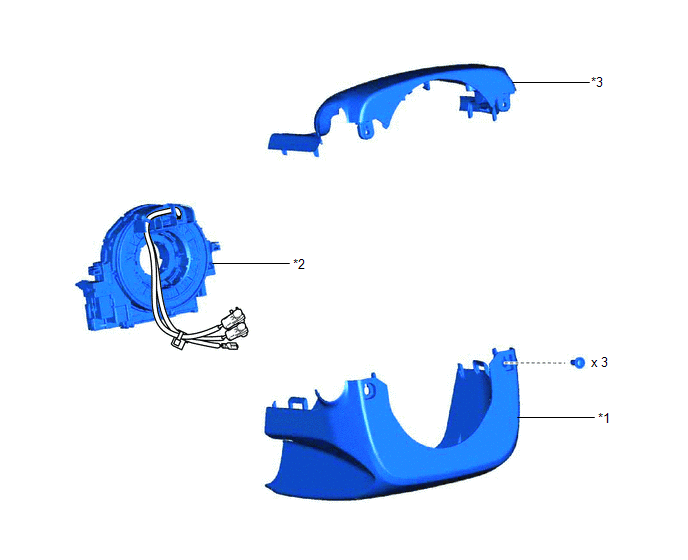

Fig 1: Spiral Cable Replacement Components [03/2017 - 03/2020] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LOWER STEERING COLUMN COVER SUB-ASSEMBLY
*2
SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3
UPPER STEERING COLUMN COVER
-
-

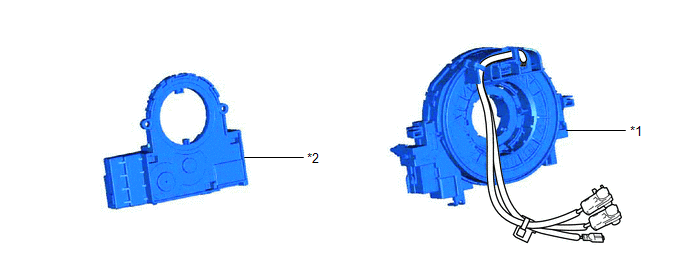

Fig 2: Spiral Cable Replacement Components [03/2017 - 03/2020] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
SPIRAL CABLE SUB-ASSEMBLY
*2
STEERING SENSOR
