Removal [03/2017 - 06/2017]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [03/2017 - 06/2017]

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 06/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 06/2017]

  3. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 4

  4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 5

  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Disconnect the front door opening trim weatherstrip RH to the extent that allows the removal of the instrument side panel RH.

  6. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 31

  7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  8. REMOVE NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 1

  9. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  10. REMOVE INSTRUMENT PANEL FINISH PLATE GARNISH

    Refer to PROCEDURE - Step 3

  11. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
    WARNING:

    When storing the lower No. 2 instrument panel airbag assembly, keep the airbag deployment side facing upward.

    GTY540736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

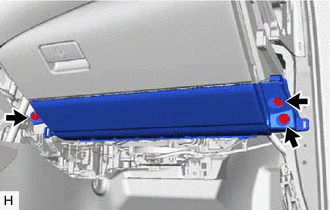

    3. Remove the 3 bolts.
      GTY759133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

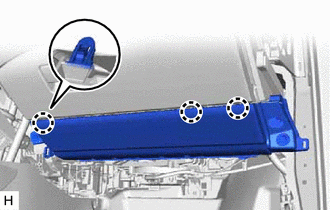

    4. Disengage the 3 claws to separate the lower No. 2 instrument panel airbag assembly.
      GTY759132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When separating the lower No. 2 instrument panel airbag assembly, do not pull the airbag wire harness.

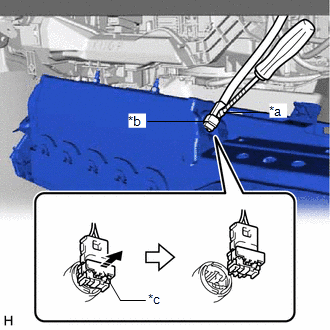

    5. GTY750426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Airbag Connector
      *c Airbag Connector Locking Button
      Release in this Direction

      Using a screwdriver with its tip wrapped with protective tape, release the airbag connector locking button.

    6. Disconnect the airbag connector to remove the lower No. 2 instrument panel airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
