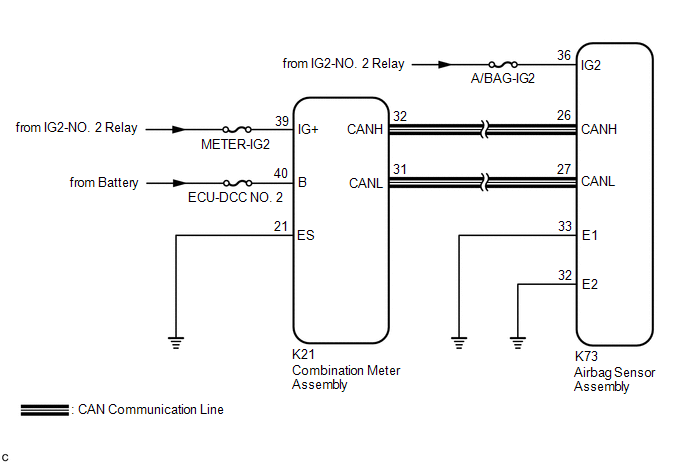

SRS Warning Light does not Come ON [06/2017 - ]: Wiring Diagram

GTY744856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
