Airbag System - Diagnostic Codes (3 Of 3) & Symptom Tests (Except Hybrid)
>>
Airbag System
>>
DTC B1855: Short in Rear Side Squib LH Circuit; DTC B1856: Open in Rear Side Squib LH Circuit; DTC B1857: Short to GND in Rear Side Squib LH Circuit; DTC B1858: Short to B+ in Rear Side Squib LH Circuit [06/2017 - ]
>>

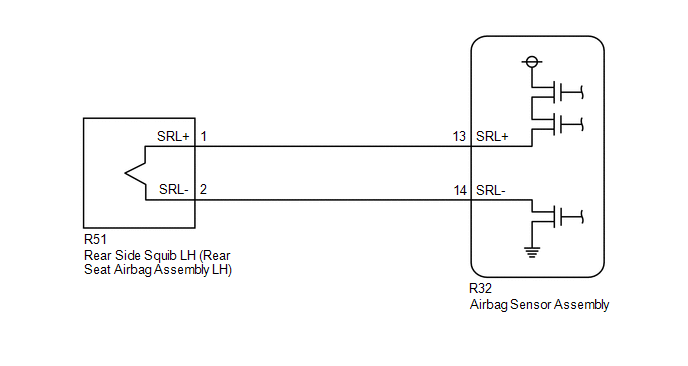

Wiring Diagram
DTC B1855: Short in Rear Side Squib LH Circuit; DTC B1856: Open in Rear Side Squib LH Circuit; DTC B1857: Short to GND in Rear Side Squib LH Circuit; DTC B1858: Short to B+ in Rear Side Squib LH Circuit [06/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
