Camry LE, FWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Airbag System - Diagnostic Codes (3 Of 3) & Symptom Tests (Except Hybrid)
>>
Airbag System
>>
DTC B1820: Short in Side Squib (RH) Circuit; DTC B1821: Open in Side Squib (RH) Circuit; DTC B1822: Short in Side Squib (RH) Circuit (to Ground); DTC B1823: Short in Side Squib (RH) Circuit (to +B) [03/2017 - 06/2017]
>>
Wiring Diagram

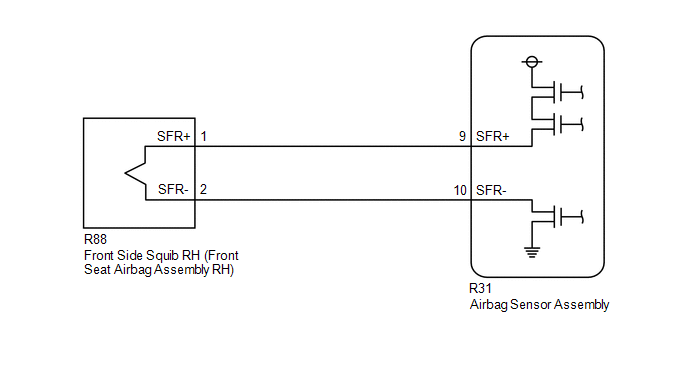

DTC B1820: Short in Side Squib (RH) Circuit; DTC B1821: Open in Side Squib (RH) Circuit; DTC B1822: Short in Side Squib (RH) Circuit (to Ground); DTC B1823: Short in Side Squib (RH) Circuit (to +B) [03/2017 - 06/2017]: Wiring Diagram
