Airbag System - Diagnostic Codes (2 Of 3) (Except Hybrid)
>>
Airbag System
>>
DTC B1805: Short in P Squib Circuit; DTC B1806: Open in P Squib Circuit; DTC B1807: Short in P Squib Circuit (to Ground); DTC B1808: Short in P Squib Circuit (to +B) [03/2017 - ]
>>

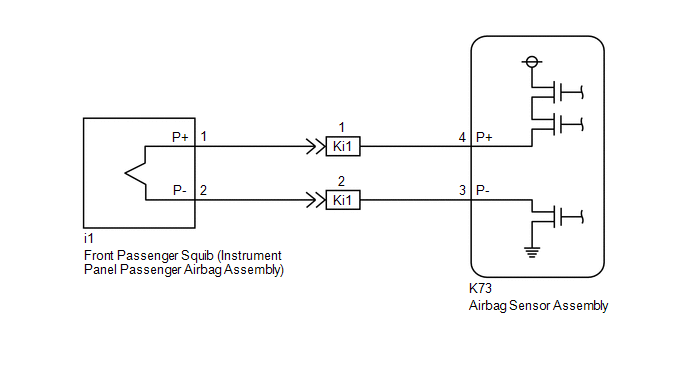

Wiring Diagram
DTC B1805: Short in P Squib Circuit; DTC B1806: Open in P Squib Circuit; DTC B1807: Short in P Squib Circuit (to Ground); DTC B1808: Short in P Squib Circuit (to +B) [03/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
