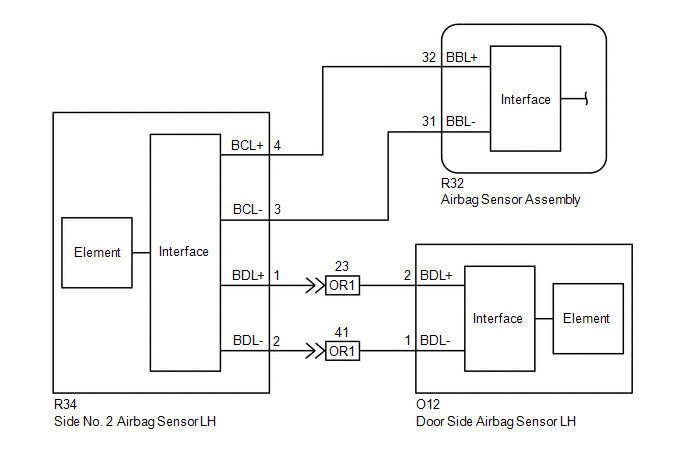

DTC B1647: Side Satellite Sensor Bus Lost Communication (LH); DTC B1648: Side Satellite Sensor Bus Initialization Error (LH) [03/2017 - 08/2022]: Wiring Diagram

GTY765583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
