Airbag System - Diagnostic Codes (2 Of 3) (Except Hybrid)
>>
Airbag System
>>
DTC B1642: Side Satellite Sensor Bus Lost Communication (RH); DTC B1643: Side Satellite Sensor Bus Initialization Error (RH) [03/2017 - 08/2022]
>>

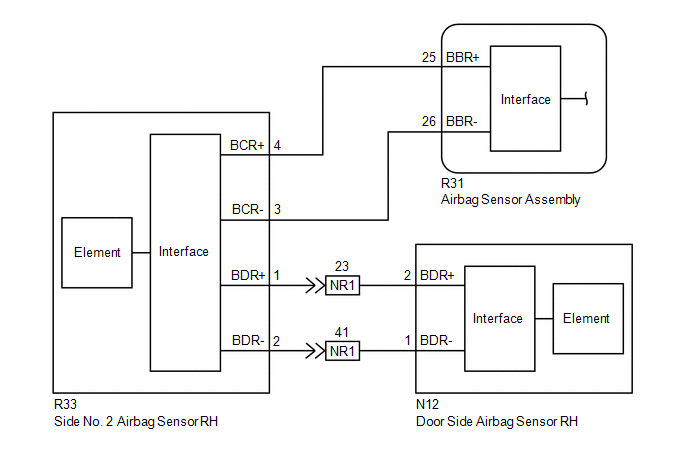

Wiring Diagram
DTC B1642: Side Satellite Sensor Bus Lost Communication (RH); DTC B1643: Side Satellite Sensor Bus Initialization Error (RH) [03/2017 - 08/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
