Removal [03/2017 - 06/2017]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [03/2017 - ]

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 20

Refer to PROCEDURE - Step 17

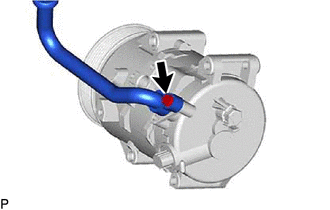

1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose sub-assembly from the compressor assembly with pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

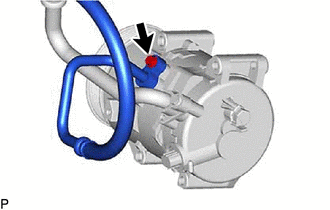

1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the suction hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

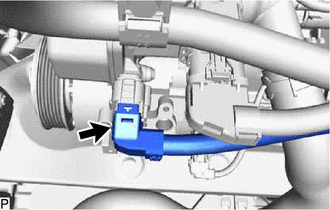

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

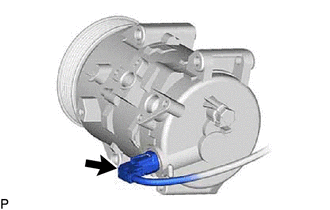

2. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. For Type A:
   1. Remove the 2 bolts and 2 nuts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      	Bolt
      	Nut

   2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor assembly with pulley.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. For Type B:
   1. Remove the 4 bolts and compressor assembly with pulley.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
