Operation not Accepted Even If Air Conditioning Switch is Operated [03/2017 - 10/2020]: Wiring Diagram

  1. for 8 Inch Display

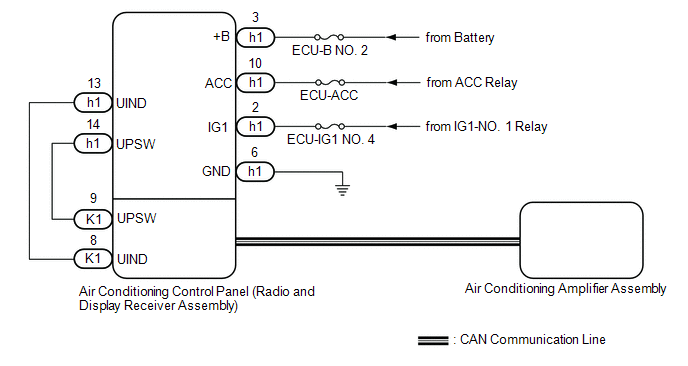

    GTY743725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 7 Inch Display
    GTY751834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
