Blower Motor Circuit [03/2017 - 10/2020]: Procedure
- PERFORM ACTIVE TEST USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Air Conditioner / Active Test.
- Perform the Active Test according to the display on the Techstream.
Body Electrical > Air Conditioner > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Blower Motor Blower motor with fan sub-assembly Min.: 0
Max.: 31- Body Electrical > Air Conditioner > Active Test
Tester Display Blower Motor Result
Result Proceed to Blower motor with fan sub-assembly does not operate A Blower motor with fan sub-assembly operates but does not change speed B
Result:
B
See step 6
Result:
A
See step 2
- CHECK HARNESS AND CONNECTOR (BLOWER MOTOR WITH FAN SUB-ASSEMBLY - BODY GROUND)
- Disconnect the A19 blower motor with fan sub-assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A19-1 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (BLOWER MOTOR WITH FAN SUB-ASSEMBLY - BATTERY)
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A19-3 (+B) - Body ground Always 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (BLOWER MOTOR WITH FAN SUB-ASSEMBLY - AIR CONDITIONING AMPLIFIER ASSEMBLY)
- Disconnect the K54 air conditioning amplifier assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A19-2 (SI) - K54-6 (BLW) Always Below 1 Ω A19-2 (SI) or K54-6 (BLW) - Other terminals and body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- INSPECT BLOWER MOTOR WITH FAN SUB-ASSEMBLY
*a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)- Connect the A19 blower motor with fan sub-assembly connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition K54-6 (BLW) - Body ground Always 4.75 to 5.25 V Result
Proceed to OK NG
Result:
NG
REPLACE BLOWER MOTOR WITH FAN SUB-ASSEMBLY. Refer to REMOVAL [03/2017 - ]
Result:
OK
See step 6
- INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY

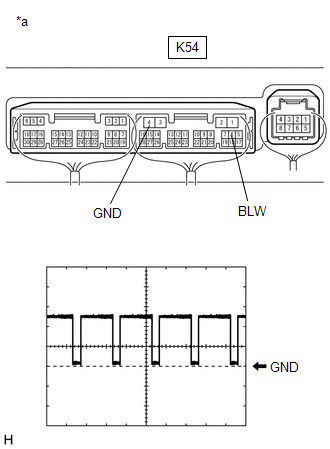

*a Component with harness connected
(Air Conditioning Amplifier Assembly)- Connect the K54 air conditioning amplifier assembly connector.
- Turn the ignition switch to ON.
- Set the blower speed to LO.
- Using a Techstream, check the waveform.
Item Content Terminal No. K54-6 (BLW) - K54-4 (GND) Tool Setting 2 V/DIV., 1 ms./DIV. Condition - Ignition switch ON
- Blower speed: LO
OK
Waveform is similar to that shown in the illustration.
HINT:
The waveform varies with the blower speed.
Result
Proceed to OK NG
Result:
OK
REPLACE BLOWER MOTOR WITH FAN SUB-ASSEMBLY. Refer to REMOVAL [03/2017 - ]
Result:
NG
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - ]
