Disassembly [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT POSITION INDICATOR

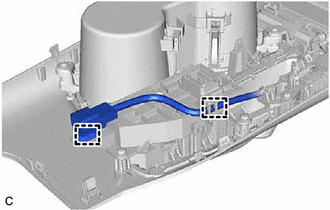

    1. Disengage the 2 clamps to disconnect the wire harness.
      GTY768644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      GTY762204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws and remove the shift position indicator from the rear upper console panel sub-assembly.
      GTY762205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LOWER POSITION INDICATOR HOUSING
    1. Disengage the 4 claws and 2 guides to remove the lower position indicator housing from the shift lock control unit assembly.
      GTY762206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the lower position indicator housing.
