Removal [03/2020 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

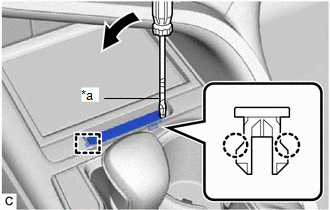

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and guide to remove the shift lock release button cover from the rear upper console panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the shift lock release button cover and rear upper console panel sub-assembly.

See step  1

Refer to REMOVAL [03/2020 - ]

1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

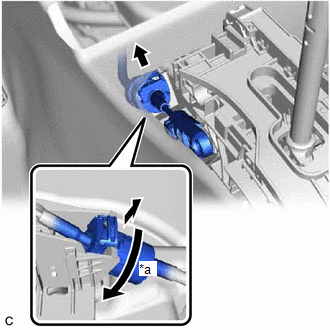

2. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Counterclockwise

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

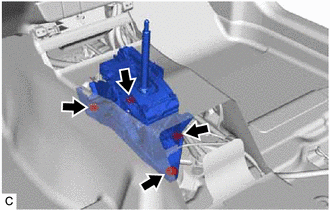

1. Remove the 4 bolts.
2. for Dual Type:

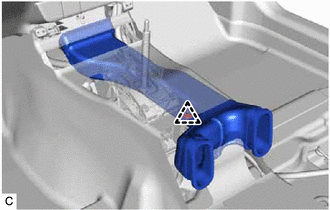

   1. Remove the clip from the No. 1 console box duct.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

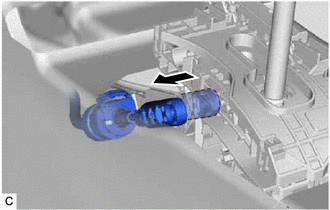

3. Disconnect the transmission control switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

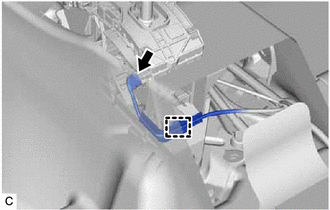

4. Disengage the clamp to disconnect the wire harness from the transmission floor shift assembly.
5. Disconnect the shift lock control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

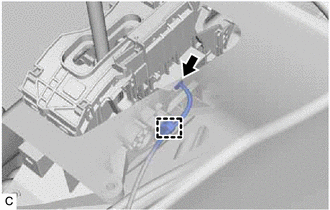

6. Disengage the clamp to disconnect the wire harness from the transmission floor shift assembly.
7. Remove the transmission floor shift assembly.
