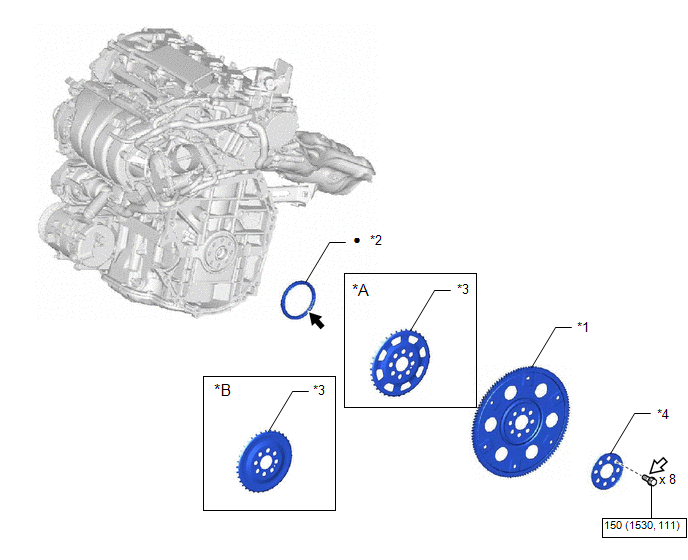

Components [03/2017 - ]
| Callout | Description | Callout | Description |
| *A | Type A | *B | Type B |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | REAR ENGINE OIL SEAL |
| *3 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | *4 | REAR DRIVE PLATE SPACER |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |
