Components [09/2019 - 03/2020]

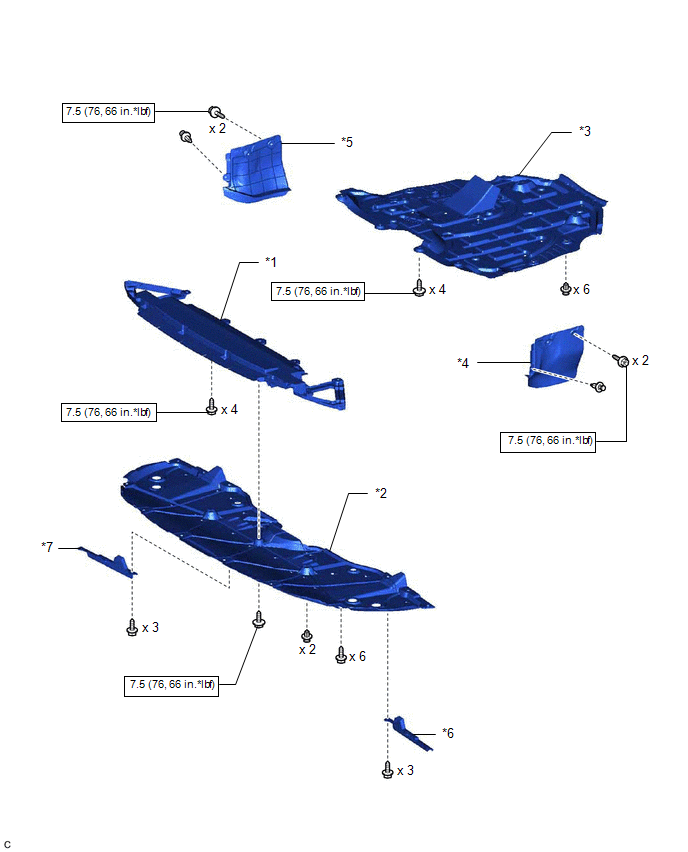

Fig 1: Engine Assembly & Engine Under Cover Replacement Components With Torque Specifications [09/2019 - 03/2020] (1 Of 5)
| Callout | Description | Callout | Description |
| *1 | FRONT LOWER BUMPER ABSORBER | *2 | NO. 1 ENGINE UNDER COVER |
| *3 | NO. 2 ENGINE UNDER COVER ASSEMBLY | *4 | FRONT FENDER APRON SEAL LH |
| *5 | FRONT FENDER APRON SEAL RH | *6 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *7 | FRONT WHEEL OPENING EXTENSION PAD RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

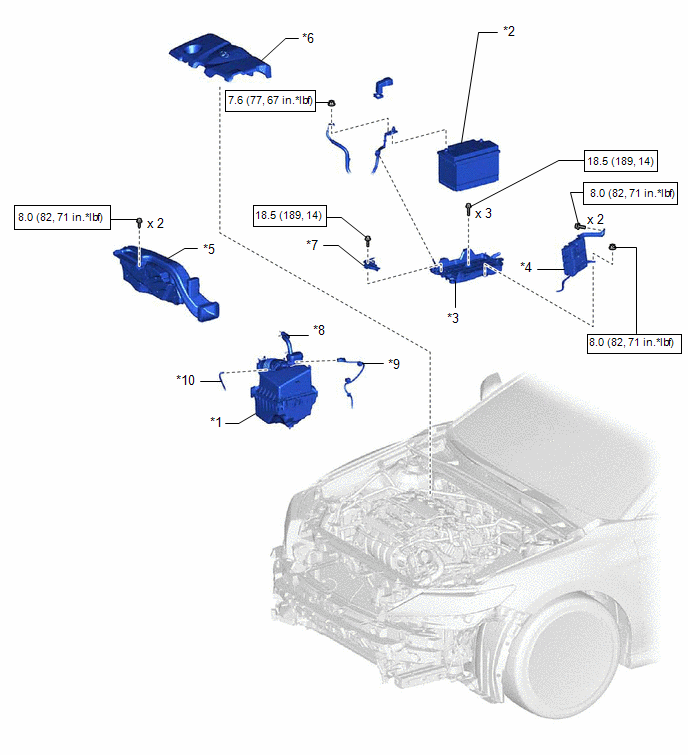

Fig 2: Engine Assembly & Engine Under Cover Replacement Components With Torque Specifications [09/2019 - 03/2020] (2 Of 5)
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | BATTERY |
| *3 | BATTERY CLAMP SUB-ASSEMBLY | *4 | ECM |
| *5 | INLET AIR CLEANER ASSEMBLY | *6 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *7 | NO. 2 BATTERY CLAMP | *8 | NO. 2 VENTILATION HOSE |
| *9 | MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR | *10 | VACUUM HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

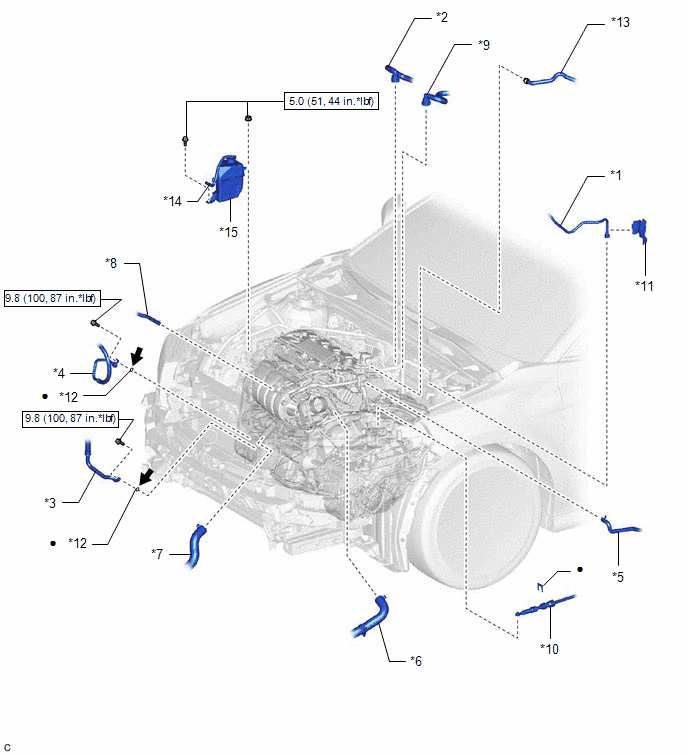

Fig 3: Engine Assembly Replacement Components With Torque Specifications [09/2019 - 03/2020] (3 Of 5)
| Callout | Description | Callout | Description |
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | INLET HEATER HOSE |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY |
| *5 | NO. 1 FUEL VAPOR FEED HOSE | *6 | NO. 1 RADIATOR HOSE |
| *7 | NO. 2 RADIATOR HOSE | *8 | NO. 5 WATER BY-PASS HOSE |
| *9 | OUTLET HEATER HOSE | *10 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *11 | NO. 1 FUEL PIPE CLAMP | *12 | O-RING |
| *13 | UNION TO CHECK VALVE HOSE | *14 | NO. 6 WATER BY-PASS HOSE |
| *15 | RADIATOR RESERVE TANK ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| for HFC-134a (R134a): Compressor oil ND-OIL 8 or equivalent for HFO-1234yf (R1234yf): Compressor oil ND-OIL 12 or equivalent |
- | - |

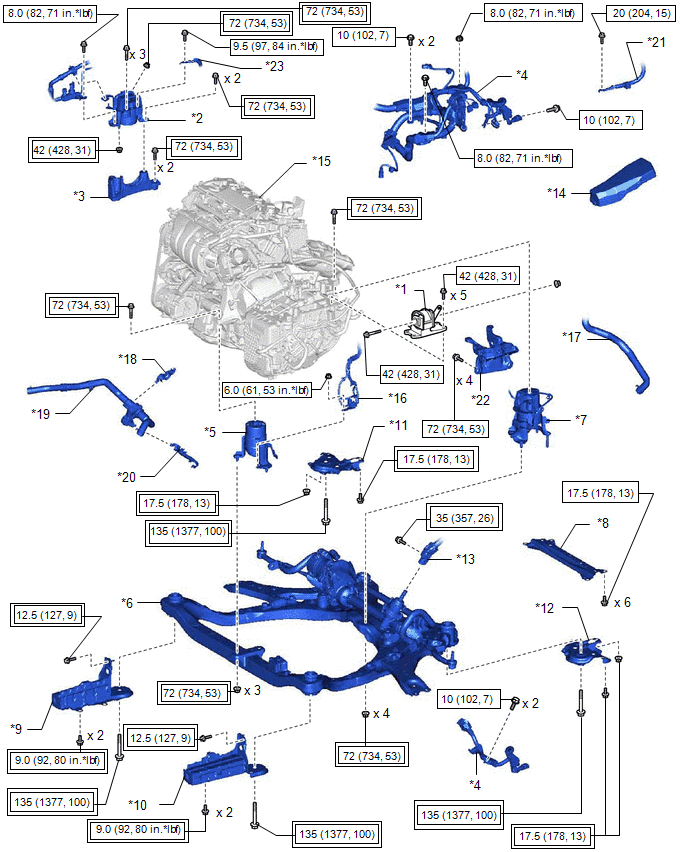

Fig 4: Engine Assembly Replacement Components With Torque Specifications [09/2019 - 03/2020] (4 Of 5)
| Callout | Description | Callout | Description |
| *1 | REAR NO. 2 ENGINE MOUNTING INSULATOR | *2 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
| *3 | ENGINE MOUNTING SPACER | *4 | WIRE HARNESS |
| *5 | FRONT ENGINE MOUNTING INSULATOR | *6 | FRONT FRAME ASSEMBLY |
| *7 | REAR ENGINE MOUNTING INSULATOR | *8 | BODY MOUNTING PLATE |
| *9 | FRONT BUMPER EXTENSION SUB-ASSEMBLY RH | *10 | FRONT BUMPER EXTENSION SUB-ASSEMBLY LH |
| *11 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH | *12 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH |
| *13 | STEERING INTERMEDIATE SHAFT ASSEMBLY | *14 | NO. 2 RELAY BLOCK COVER |
| *15 | ENGINE ASSEMBLY WITH TRANSAXLE | *16 | VACUUM HOSE |
| *17 | WATER BY-PASS HOSE ASSEMBLY | *18 | HOSE CLAMP |
| *19 | FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE) | *20 | TRANSMISSION BREATHER CLAMP |
| *21 | EARTH WIRE | *22 | ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH |
| *23 | NO. 2 EARTH WIRE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

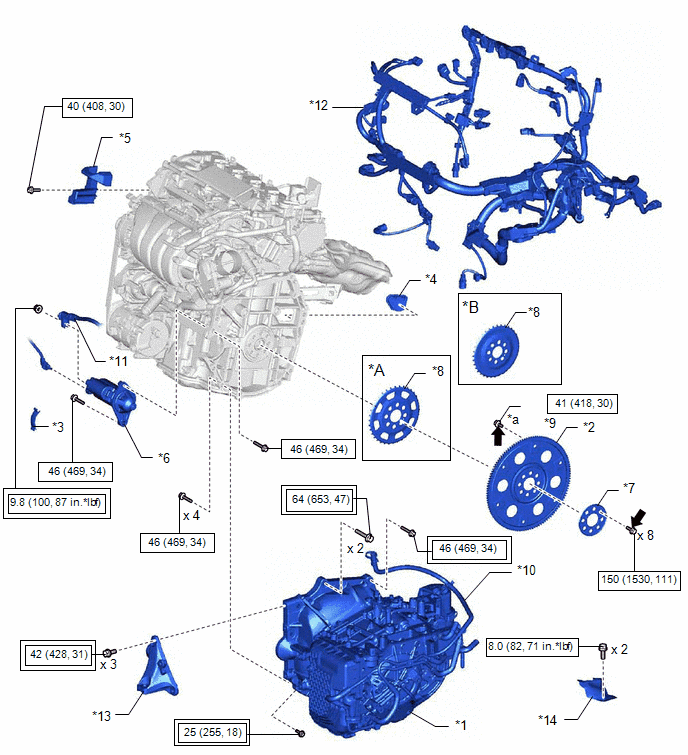

Fig 5: Engine Assembly Replacement Components With Torque Specifications [09/2019 - 03/2020] (5 Of 5)
| Callout | Description | Callout | Description |
| *A | Type A | *B | Type B |
| *1 | AUTOMATIC TRANSAXLE ASSEMBLY | *2 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 | FLYWHEEL HOUSING SIDE COVER | *4 | FLYWHEEL HOUSING UNDER COVER |
| *5 | FUEL DELIVERY GUARD | *6 | STARTER ASSEMBLY |
| *7 | REAR DRIVE PLATE SPACER | *8 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *9 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT | *10 | BREATHER PLUG HOSE |
| *11 | NO. 2 ENGINE WIRE | *12 | ENGINE WIRE |
| *13 | FRONT ENGINE MOUNTING BRACKET | *14 | STEERING GEAR HEAT INSULATOR |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| Adhesive 1324 | * | Precoated part |
