Components [03/2017 - 06/2017]

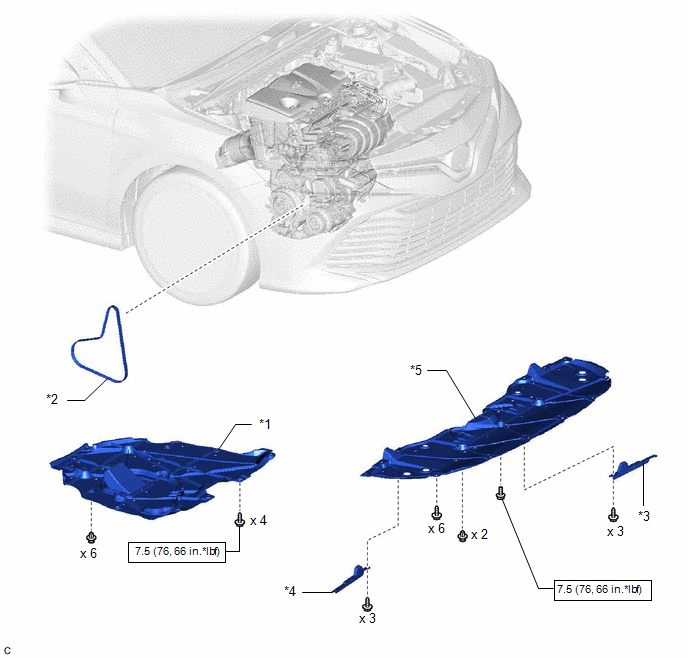

Fig 1: Drive Belt Replacement Components With Torque Specifications [03/2017 - 06/2017]
GTY766902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 ENGINE UNDER COVER ASSEMBLY *2 V-RIBBED BELT
*3 FRONT WHEEL OPENING EXTENSION PAD LH *4 FRONT WHEEL OPENING EXTENSION PAD RH
*5 NO. 1 ENGINE UNDER COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
