Components [03/2017 - ]

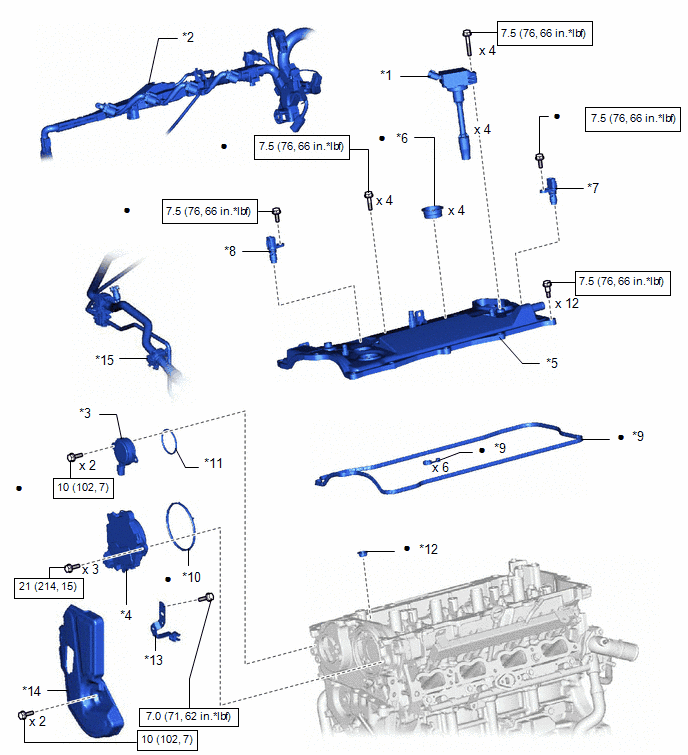

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 2)

GTY891260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	ENGINE WIRE
*3	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	*4	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*5	CYLINDER HEAD COVER SUB-ASSEMBLY	*6	SPARK PLUG TUBE GASKET
*7	CAMSHAFT POSITION SENSOR (for Intake Side)	*8	CAMSHAFT POSITION SENSOR (for Exhaust Side)
*9	CYLINDER HEAD COVER GASKET	*10	CAM TIMING CONTROL MOTOR O-RING
*11	O-RING	*12	CAMSHAFT BEARING CAP OIL HOLE GASKET
*13	NO. 2 BRAKE TUBE CLAMP BRACKET	*14	NO. 2 ENGINE COVER
*15	AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

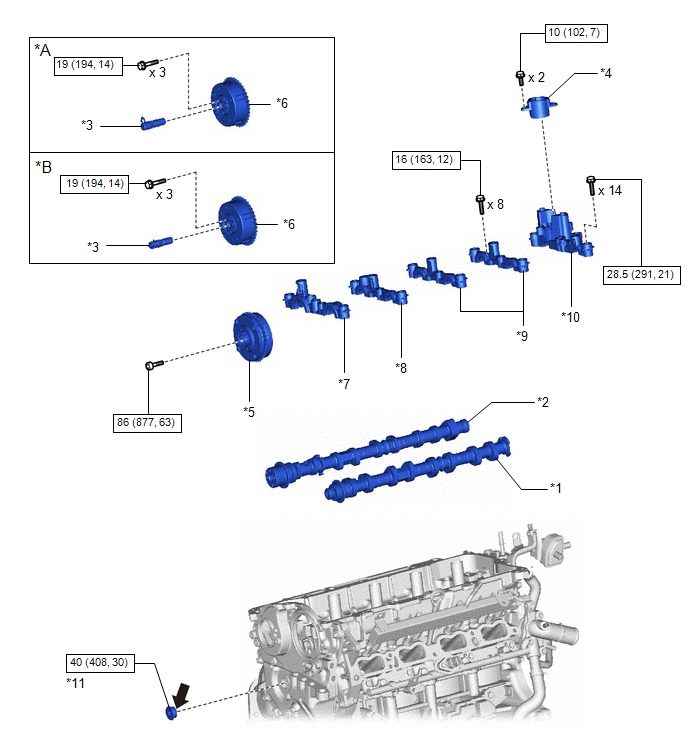

Fig 2: Camshaft Replacement Components With Torque Specifications (2 Of 2)

GTY1001035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	CAMSHAFT	*2	NO. 2 CAMSHAFT
*3	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)	*4	FUEL PUMP LIFTER GUIDE
*5	CAMSHAFT TIMING GEAR ASSEMBLY	*6	CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
*7	NO. 1 CAMSHAFT BEARING CAP	*8	NO. 2 CAMSHAFT BEARING CAP
*9	NO. 3 CAMSHAFT BEARING CAP	*10	NO. 4 CAMSHAFT BEARING CAP
*11	STRAIGHT SCREW PLUG	-	-
	Nm (kgfcm, ft.*lbf): Specified torque		Adhesive 1324
*	Precoated part	-	-
