Parts Location [03/2017 - ]: Illustration

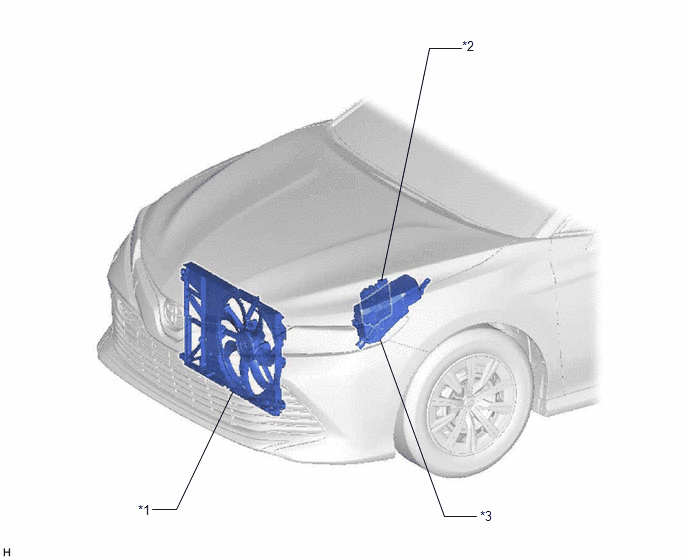

GTY771740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FAN WITH MOTOR ASSEMBLY
- COOLING FAN MOTOR
- COOLING FAN ECU		 *2 ECM
*3 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- EFI-MAIN NO. 1 RELAY		 - -
