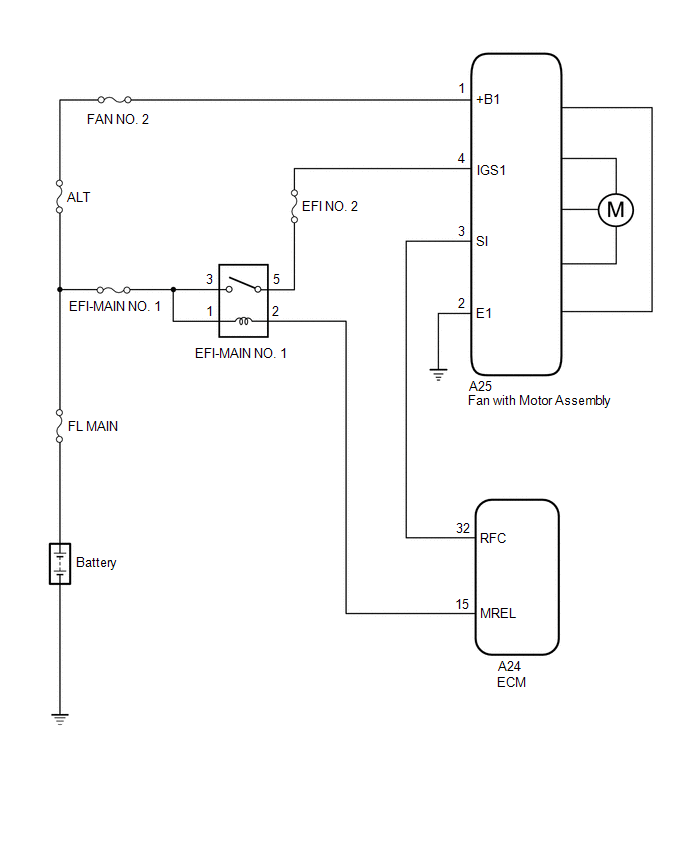

Cooling Fan Circuit [03/2017 - ]: Wiring Diagram

GTY757278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
