Removal [10/2020 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 20 [08/2022 - ]

  3. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  4. REMOVE EGR COOLER ASSEMBLY

    See step  4

  5. DISCONNECT ENGINE WIRE
    1. Disconnect the No. 5 engine wire connector.

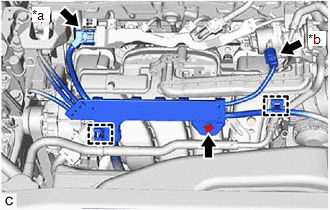

      GTY1001149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 5 Engine Wire Connector
      *b EGR Valve Assembly Connector
    2. Disconnect the EGR valve assembly connector.
    3. Remove the bolt.
    4. Disengage the 2 wire harness clamps and disconnect the engine wire.
  6. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
    1. Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.
      GTY1000497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the EGR valve adapter gasket from the No. 1 EGR pipe sub-assembly.
      GTY1000347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the EGR inlet gasket from the intake manifold.
      GTY754218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE EGR VALVE ASSEMBLY
    1. Slide the clip and disconnect the No. 8 water by-pass hose from the EGR valve assembly.
      GTY1000502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 8 water by-pass hose
      *2 No. 4 water by-pass hose
    2. Slide the clip and remove the No. 4 water by-pass hose from the EGR valve assembly.
    3. Using an 8 mm socket wrench, remove the 2 bolts and EGR valve assembly from the camshaft housing.
      GTY1000512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
