Components [03/2017 - ]

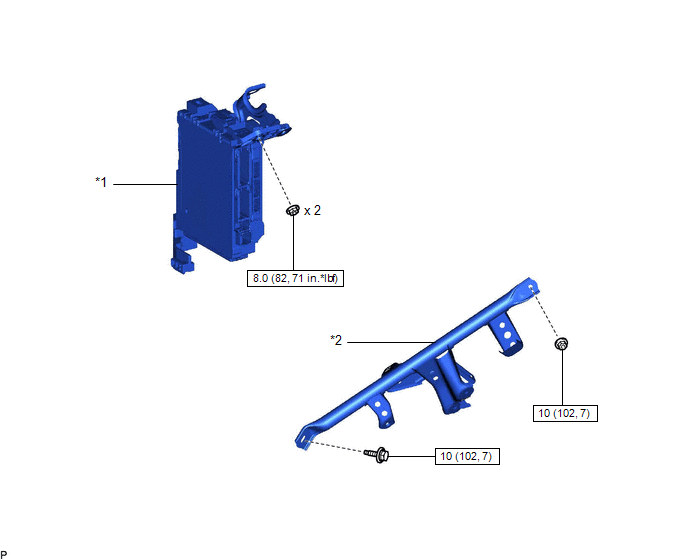

Fig 1: Main Body ECU Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU	*2	NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

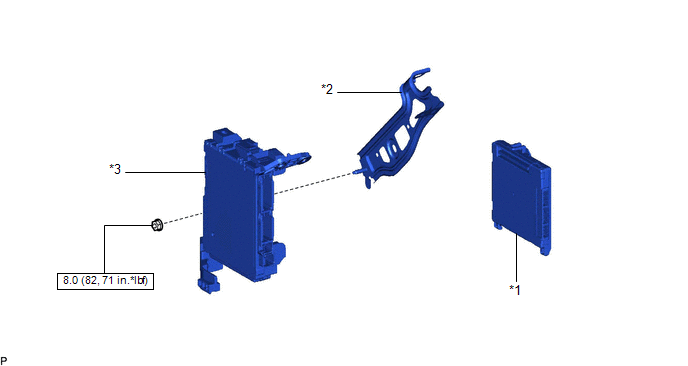

Fig 2: Main Body ECU Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	WIRING HARNESS CLAMP BRACKET
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
