Speed Signal Circuit [09/2019 - ]: Wiring Diagram

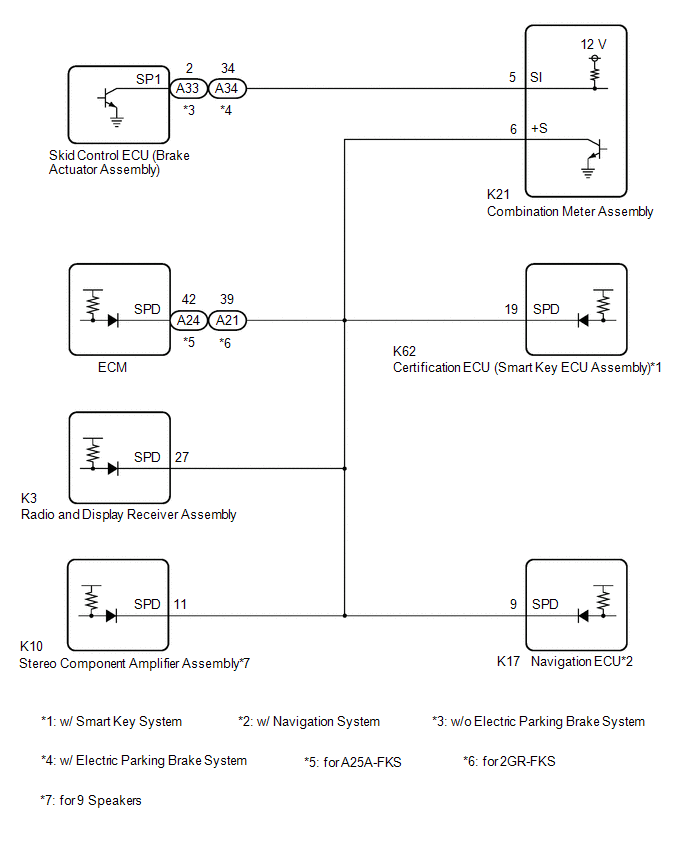

Fig 1: Speed Signal Circuit [09/2019 - ]

GTY992779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
