Data List / Active Test [03/2017 - 06/2017]

  1. DATA LIST
    NOTE:

    In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

    HINT:

    Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus:
      1. for Combination Meter: Body Electrical / Combination Meter / Data List.
      2. for ABS/VSC/TRAC: Chassis / ABS/VSC/TRAC / Data List.
      3. for Engine: Powertrain / Engine / Data List.
      4. for Main Body: Body Electrical / Main Body / Data List.
    5. Read the Data List according to the display on the Techstream.
      1. Combination Meter

        Body Electrical > Combination Meter > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        Total Distance Traveled Total distance traveled Min.: 0, Max.: 16777215 - -
        Total Distance Traveled - Unit Total Distance Traveled unit km or mile - -
        ODO/TRIP Change Switch ODO/TRIP switch (Trip switch) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Light Control Switch (UP) Light control rheostat up switch (Trip switch) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Light Control Switch (DOWN) Light control rheostat down switch (Trip switch) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Up) Steering pad switch (Up) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Down) Steering pad switch (Down) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Left) Steering pad switch (Left) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Right) Steering pad switch (Right) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Enter) Steering pad switch (OK) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Back) Steering pad switch (Back) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        +B Voltage Battery voltage Min.: 0 V, Max.: 25.4 V 11 to 14 V -
        Fuel Input Fuel input Min.: 0 L, Max.: 655.34 L
        • Fuel receiver gauge indicates F: 54.5 L
        • Fuel receiver gauge indicates 3/4: 45.5 L
        • Fuel receiver gauge indicates 1/2: 30.3 L
        • Fuel receiver gauge indicates 1/4: 15.2 L
        • Fuel receiver gauge indicates E: 6.1 L
        		 -
        Sub Fuel Input Sub fuel input Min.: 0 L, Max.: 655.34 L Current fuel level displayed Not applicable to this vehicle
        Vehicle Speed Meter Vehicle speed Min.: 0 km/h, Max.: 255 km/h Almost the same as actual vehicle speed -
        Engine RPM Engine speed Min.: 0 rpm, Max.: 12700 rpm Almost the same as actual tachometer -
        Washer Level Warning Switch Washer fluid level warning switch OFF or ON OFF: Washer fluid level not low
        ON: Washer fluid level low        		 -
        Driver Buckle Switch Driver seat belt buckle switch Fastened or Not Fastened Fastened: Driver seat belt buckle switch fastened
        Not Fastened: Driver seat belt buckle switch unfastened        		 Not applicable to this vehicle
        Passenger Buckle Switch Front passenger seat belt buckle switch Fastened or Not Fastened Fastened: Front passenger seat belt buckle switch fastened
        Not Fastened: Front passenger seat belt buckle switch unfastened        		 Not applicable to this vehicle
        Passenger Occupant Detection Switch Occupant detection sensor OFF or ON OFF: Front passenger seat not occupied
        ON: Front passenger seat occupied        		 Not applicable to this vehicle
        Passenger Buckle / Occupant Detection Warning Switch Front passenger seat belt buckle switch and occupant detection sensor OFF or ON OFF: Front passenger seat belt fastened or front passenger seat not occupied
        ON: Front passenger seat belt unfastened and front passenger seat occupied        		 Not applicable to this vehicle
        Rear Right Seat Buckle / Occupant Detection Warning Switch Rear right seat belt buckle switch (Rear seat inner with center belt assembly RH) OFF or ON OFF: Rear right seat belt fastened
        ON: Rear right seat belt unfastened        		 -
        Rear Left Seat Buckle / Occupant Detection Warning Switch Rear left seat belt buckle switch (Rear seat inner with center belt assembly LH) OFF or ON OFF: Rear left seat belt fastened
        ON: Rear left seat belt unfastened        		 -
        Rear Center Seat Buckle / Occupant Detection Warning Switch Rear center seat belt buckle switch (Rear seat inner with center belt assembly LH) OFF or ON OFF: Rear center seat belt fastened
        ON: Rear center seat belt unfastened        		 -
        Hazard Flasher Switch Hazard warning signal switch OFF or ON OFF: Hazard warning signal switch off
        ON: Hazard warning signal switch on        		 -
        Ambient Temperature (Celsius) Outside temperature (Celsius) Min.: -40.0°C, Max.: 87.0°C Almost the same as actual outside temperature Not applicable to this vehicle
        Ambient Temperature (Fahrenheit) Outside temperature (Fahrenheit) Min.: -40°F, Max.: 215°F Almost the same as actual outside temperature -
        Lighting System Existence of headlight control ECU With or Without With: w/ Headlight Control ECU
        Without: w/o Headlight Control ECU        		 Not applicable to this vehicle
        Back Door System Existence of power back door system With or Without With: w/ Power Back Door System
        Without: w/o Power Back Door System        		 Not applicable to this vehicle
        Oil Pressure Switch Engine oil pressure switch OFF or ON OFF: Engine started
        ON: Engine not started        		 Not applicable to this vehicle
        Oil Level Switch Engine oil level sensor OFF or ON OFF: Engine oil level not low
        ON: Engine oil level low        		 -
        Coolant Temperature Engine coolant temperature Min.: 0°C, Max.: 127.0°C 75 to 100°C: After warming up engine -
        Integrated value for Maintenance Maintenance required reminder value Min.: 0 miles, Max.: 25400 miles Driving distance after performing maintenance required reminder reset procedure displayed -
        Brake Fluid Amount Brake fluid level OK or Low OK: Brake fluid level normal
        Low: Brake fluid level abnormal        		 -
        Brake Negative Pressure Brake vacuum pressure OK or NG OK: Brake vacuum pressure normal
        NG: Brake vacuum pressure abnormal        		 -
        TPMS System Existence of tire pressure warning system With or Without With: w/ Tire Pressure Warning System
        Without: w/o Tire Pressure Warning System        		 -
        VGRS System Existence of variable gear ratio steering system With or Without With: w/ Variable Gear Ratio Steering System
        Without: w/o Variable Gear Ratio Steering System        		 -
        VSC System Existence of vehicle stability control system With or Without With: w/ Vehicle Stability Control System
        Without: w/o Vehicle Stability Control System        		 -
        DRS System Existence of dynamic rear steering system With or Without With: w/ Dynamic Rear Steering System
        Without: w/o Dynamic Rear Steering System        		 -
        Pop Up Hood System Existence of pop up hood With or Without With: w/ Pop up Hood
        Without: w/o Pop up Hood        		 -
        AVS System Existence of adaptive variable suspension system With or Without With: w/ Adaptive Variable Suspension System
        Without: w/o Adaptive Variable Suspension System        		 -
        LDA System Existence of lane departure alert system With or Without With: w/ Lane Departure Alert System
        Without: w/o Lane Departure Alert System        		 -
        PCS System Existence of pre-collision system With or Without With: w/ Pre-collision System
        Without: w/o Pre-collision System        		 -
        ICS System Existence of intelligent clearance sonar system With or Without With: w/ Intelligent Clearance Sonar System
        Without: w/o Intelligent Clearance Sonar System        		 -
        Radar Cruise System Existence of dynamic radar cruise control system With or Without With: w/ Dynamic Radar Cruise Control System
        Without: w/o Dynamic Radar Cruise Control System        		 -
        Intuitive P/A System Existence of intuitive parking assist system With or Without With: w/ Intuitive Parking Assist System
        Without: w/o Intuitive Parking Assist System        		 -
        Road Sign Assist System Existence of road sign assist system With or Without With: w/ Road Sign Assist System
        Without: w/o Road Sign Assist System        		 -
        ODO Display Time After IG OFF Adjust Setting of ODO display time after the ignition switch is turned off 30s, 60s, 600s or OFF Displays customize setting of ODO Display Time After the Ignition Switch is Turned Off -
        Flasher Sound Volume Adjust Setting of flasher sound volume adjustment Large, Medium or Small Displays customize setting of Flasher Sound Volume Adjustment -
        ECO Drive Indicator Zone Display Function Setting of ECO driving indicator zone OFF or ON OFF: Eco driving indicator zone not displayed
        ON: Eco driving indicator zone displayed        		 Displays customize setting of ECO Driving Indicator Zone Display Function

        HINT:

        Depending on the specifications of the vehicle, some items may not be displayed.

      2. ABS/VSC/TRAC

        Chassis > ABS/VSC/TRAC > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        Vehicle Speed Maximum wheel speed sensor Min.: 0 km/h (0 mph), Max.: 326.4 km/h (203 mph) Vehicle stopped: 0 km/h (0 mph) When driving at constant speed: No large fluctuations
      3. Engine

        Powertrain > Engine > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        Engine Speed Engine speed Min.: 0 rpm, Max.: 16383 rpm 600 to 700 rpm: Idling (shift lever in P, engine warmed up and A/C off) When the crankshaft position sensor is malfunctioning, "Engine Speed" is approximately 0 rpm or varies greatly from the actual engine speed.
      4. Main Body

        Body Electrical > Main Body > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        Suggestion Service Function Setting of Suggestion Service OFF, Only Parked or ON Displays customize setting of Suggestion Service Function -
  2. ACTIVE TEST

    HINT:

    Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
    5. Perform the Active Test according the display on the Techstream.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Speedometer Operation (0km/h, 0MPH) Speedometer 0 km/h (0 mph)*1 OFF or ON -
      Speedometer Operation (40km/h, 40MPH) Speedometer 40 km/h (40 mph)*1 OFF or ON The value displayed on the speedometer may deviate.
      Reference mph: 40 →
      39.5 to 42.3
      Speedometer Operation (80km/h, 80MPH) Speedometer 80 km/h (80 mph)*1 OFF or ON The value displayed on the speedometer may deviate.
      Reference mph: 80 →
      80.2 to 83.4
      Speedometer Operation (120km/h, 120MPH) Speedometer 120 km/h (120 mph)*1 OFF or ON The value displayed on the speedometer may deviate.
      Reference mph: 120 →
      121.1 to 124.3
      Speedometer Operation (160km/h, 160MPH) Speedometer 160 km/h (160 mph)*1 OFF or ON -
      Speedometer Operation (200km/h, 200MPH) Speedometer 200 km/h (200 mph)*1 OFF or ON -
      Speedometer Operation (240km/h, 240MPH) Speedometer 240 km/h (240 mph)*1 OFF or ON -
      Speedometer Operation (280km/h, 280MPH) Speedometer 280 km/h (280 mph)*1 OFF or ON -
      Speedometer Operation (320km/h, 320MPH) Speedometer 320 km/h (320 mph)*1 OFF or ON -
      Speedometer Operation (360km/h, 360MPH) Speedometer 360 km/h (360 mph)*1 OFF or ON -
      Speedometer Operation (400km/h, 400MPH) Speedometer 400 km/h (400 mph)*1 OFF or ON -
      TachoMeter Operation (0rpm) Tachometer (0 rpm) OFF or ON -
      TachoMeter Operation (1000rpm) Tachometer (1000 rpm) OFF or ON -
      TachoMeter Operation (2000rpm) Tachometer (2000 rpm) OFF or ON -
      TachoMeter Operation (3000rpm) Tachometer (3000 rpm) OFF or ON -
      TachoMeter Operation (4000rpm) Tachometer (4000 rpm) OFF or ON -
      TachoMeter Operation (5000rpm) Tachometer (5000 rpm) OFF or ON -
      TachoMeter Operation (6000rpm) Tachometer (6000 rpm) OFF or ON -
      TachoMeter Operation (7000rpm) Tachometer (7000 rpm) OFF or ON -
      TachoMeter Operation (8000rpm) Tachometer (8000 rpm) OFF or ON -
      TachoMeter Operation (9000rpm) Tachometer (9000 rpm) OFF or ON -
      TachoMeter Operation (10000rpm) Tachometer (10000 rpm) OFF or ON -

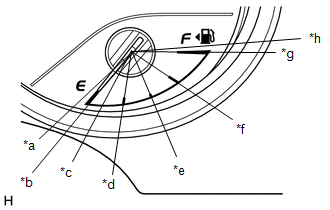

      Fuel Gauge Operation (Sender E) Fuel receiver gauge (Sender E) OFF or ON See Display 1
      Fuel Gauge Operation (Empty) Fuel receiver gauge (Empty) OFF or ON See Display 1
      Fuel Gauge Operation (Warning) Fuel receiver gauge (Warning) OFF or ON See Display 1
      Fuel Gauge Operation (1/4) Fuel receiver gauge (1/4) OFF or ON See Display 1
      Fuel Gauge Operation (1/2) Fuel receiver gauge (1/2) OFF or ON See Display 1
      Fuel Gauge Operation (3/4) Fuel receiver gauge (3/4) OFF or ON See Display 1
      Fuel Gauge Operation (Full) Fuel receiver gauge (Full) OFF or ON See Display 1
      Fuel Gauge Operation (Sender F) Fuel receiver gauge (Sender F) OFF or ON See Display 1
      Water Temperature Meter Operation (50C, 122F) Engine coolant temperature receiver gauge 50°C (122°F) OFF or ON See Display 2
      Water Temperature Meter Operation (60C, 140F) Engine coolant temperature receiver gauge 60°C (140°F) OFF or ON See Display 2
      Water Temperature Meter Operation (70C, 158F) Engine coolant temperature receiver gauge 70°C (158°F) OFF or ON See Display 2
      Water Temperature Meter Operation (80C, 176F) Engine coolant temperature receiver gauge 80°C (176°F) OFF or ON See Display 2
      Water Temperature Meter Operation (Middle) Engine coolant temperature receiver gauge (Middle) OFF or ON See Display 2
      Water Temperature Meter Operation (110C, 230F) Engine coolant temperature receiver gauge 110°C (230°F) OFF or ON See Display 2
      Water Temperature Meter Operation (120C, 248F) Engine coolant temperature receiver gauge 120°C (248°F) OFF or ON See Display 2
      Water Temperature Meter Operation (127C, 260F) Engine coolant temperature receiver gauge 127°C (260°F) OFF or ON See Display 2
      Buzzer Operation (800Hz, Vol L, W/ Damping) Combination meter buzzer
      • Frequency: 800Hz
      • Volume: Large
      • Fading tone
      		 ON -
      Buzzer Operation (800Hz, Vol L, W/O Damping) Combination meter buzzer
      • Frequency: 800Hz
      • Volume: Large
      • Continuous tone
      		 ON -
      Buzzer Operation (800Hz, Vol S, W/ Damping) Combination meter buzzer
      • Frequency: 800Hz
      • Volume: Small
      • Fading tone
      		 ON -
      Buzzer Operation (800Hz, Vol S, W/O Damping) Combination meter buzzer
      • Frequency: 800Hz
      • Volume: Small
      • Continuous tone
      		 ON -
      Buzzer Operation (1.6kHz, Vol S, W/O Damping) Combination meter buzzer
      • Frequency: 1.6kHz
      • Volume: Small
      • Continuous tone
      		 ON -
      Buzzer Operation (2.4kHz, Vol L, W/O Damping) Combination meter buzzer
      • Frequency: 2.4kHz
      • Volume: Large
      • Continuous tone
      		 ON -
      Multi Display All (White) Multi-information display (White display) ON -
      Multi Display Default Screen Multi-information display (Default screen) ON -
      Fuel Gauge Indicator Fuel level warning light OFF or ON -
      Master Warning Master warning light OFF or ON -
      High Beam Indicator High beam indicator light OFF or ON -
      Headlamp Indicator Head indicator light OFF or ON -
      Automatic High Beam Indicator (Green) Automatic high beam indicator light OFF or ON -
      Left Turn Signal Indicator LH turn indicator light OFF or ON -
      Right Turn Signal Indicator RH turn indicator light OFF or ON -
      Driver Side Seat Belt Warning Driver or front passenger seat belt warning light OFF or ON -
      Rear Seat Belt Warning Rear seat belt warning light OFF or ON -
      Airbag Warning SRS warning light OFF or ON -
      Check Engine Warning MIL (Check engine warning light) OFF or ON -
      Brake Warning Brake warning light OFF or ON -
      Park Warning Parking brake warning light OFF or ON -
      ABS Warning ABS warning light OFF or ON -
      ECB Warning Brake warning light / yellow (minor malfunction) OFF or ON Not applicable to this vehicle
      Slip Warning Slip indicator light OFF or ON -
      VSC OFF Indicator VSC OFF indicator light OFF or ON -
      Brake Hold Indicator Brake hold indicator light OFF or ON Not applicable to this vehicle
      Hold Indicator Brake hold warning light OFF or ON Not applicable to this vehicle
      Tire Pressure Warning System Indicator Tire pressure warning light OFF or ON -
      EPS Warning EPS warning light (red) OFF or ON -
      PPS Warning EPS warning light (yellow) OFF or ON -
      PCS OFF Warning PCS warning light OFF or ON -
      RCTA Indicator RCTA indicator light OFF or ON -
      ICS OFF Warning ICS OFF indicator light OFF or ON Not applicable to this vehicle
      Speed Signal Input (0) Vehicle speed test signal input (0)*2 OFF or ON -
      Speed Signal Input (40) Vehicle speed test signal input (40)*2 OFF or ON The value displayed on the speedometer may deviate.
      Reference mph: 40 →
      39.5 to 42.3
      Speed Signal Input (80) Vehicle speed test signal input (80)*2 OFF or ON The value displayed on the speedometer may deviate.
      Reference mph: 80 →
      80.2 to 83.4
      Speed Signal Input (120) Vehicle speed test signal input (120)*2 OFF or ON The value displayed on the speedometer may deviate.
      Reference mph: 120 →
      121.1 to 124.3
      Speed Signal Input (160) Vehicle speed test signal input (160)*2 OFF or ON -
      Speed Signal Input (200) Vehicle speed test signal input (200)*2 OFF or ON -
      Speed Signal Input (240) Vehicle speed test signal input (240)*2 OFF or ON -
      Speed Signal Input (280) Vehicle speed test signal input (280)*2 OFF or ON -
      Speed Signal Input (320) Vehicle speed test signal input (320)*2 OFF or ON -
      Speed Signal Input (360) Vehicle speed test signal input (360)*2 OFF or ON -
      Speed Signal Input (400) Vehicle speed test signal input (400)*2 OFF or ON -
      ODO/TRIP Change Switch ODO/TRIP switch (Trip switch) OFF or ON -
      Light Control Switch (UP) Light control rheostat up switch (Trip switch) OFF or ON -
      Light Control Switch (DOWN) Light control rheostat down switch (Trip switch) OFF or ON -
      Multi Switch (Up) Steering pad switch (Up) OFF or ON -
      Multi Switch (Down) Steering pad switch (Down) OFF or ON -
      Multi Switch (Left) Steering pad switch (Left) OFF or ON -
      Multi Switch (Right) Steering pad switch (Right) OFF or ON -
      Multi Switch (Enter) Steering pad switch (OK) OFF or ON -
      Multi Switch (Back) Steering pad switch (Back) OFF or ON -

      HINT:

      • Depending on the specifications of the vehicle, some items may not be displayed.
      • *1: When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.
      • *2: When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
      1. [Display 1]:Fuel receiver gauge
        GTY757276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fuel Gauge Operation (Sender E)
        *b Fuel Gauge Operation (Empty)
        *c Fuel Gauge Operation (Warning)
        *d Fuel Gauge Operation (1/4)
        *e Fuel Gauge Operation (1/2)
        *f Fuel Gauge Operation (3/4)
        *g Fuel Gauge Operation (Full)
        *h Fuel Gauge Operation (Sender F)
      2. [Display 2]:Engine coolant temperature receiver gauge
        GTY771782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Water Temperature Meter Operation 50C (122F)
        *b Water Temperature Meter Operation 60C (140F)
        *c Water Temperature Meter Operation 70C (158F)
        *d Water Temperature Meter Operation 80C (176F)
        *e Water Temperature Meter Operation (Middle)
        *f Water Temperature Meter Operation 110C (230F)
        *g Water Temperature Meter Operation 120C (248F)
        *h Water Temperature Meter Operation 127C (260F)
scientia non olet · About LEMON Manuals
