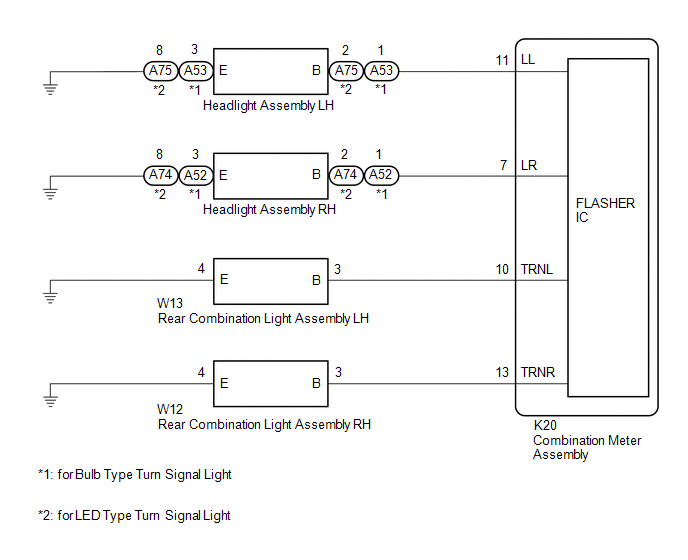

DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [06/2017 - ]: Wiring Diagram

GTY767183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
