Home >> Toyota >> 2021 >> Camry LE, FWD >> Repair and Diagnosis >> Electrical >> Gauges >> Meter / Gauge System - Diagnostic Codes & Symptom Tests (Except Hybrid) >> Meter / Gauge System >> DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [03/2017 - 06/2017] >> Wiring Diagram

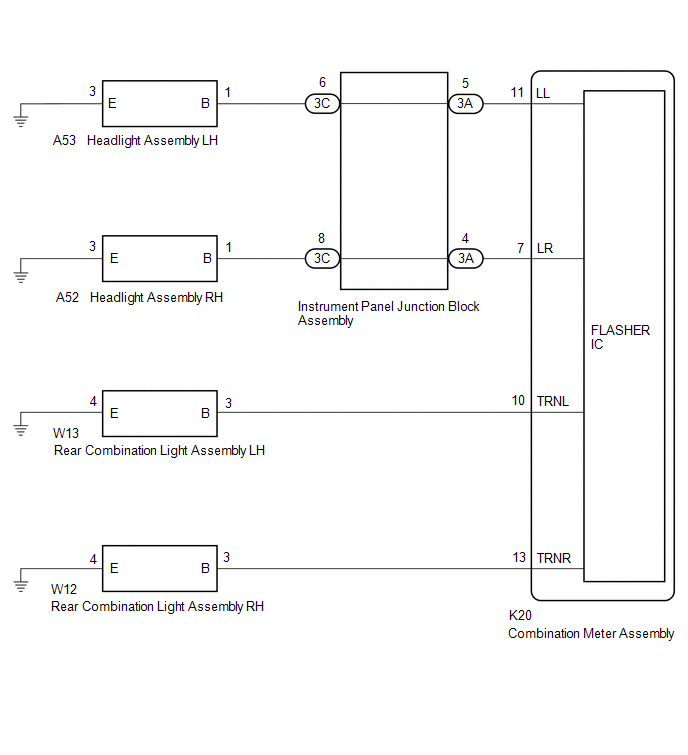

DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [03/2017 - 06/2017]: Wiring Diagram

GTY745621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
