DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [03/2020 - ]: Wiring Diagram

  1. FOR 2WD
    GTY983059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

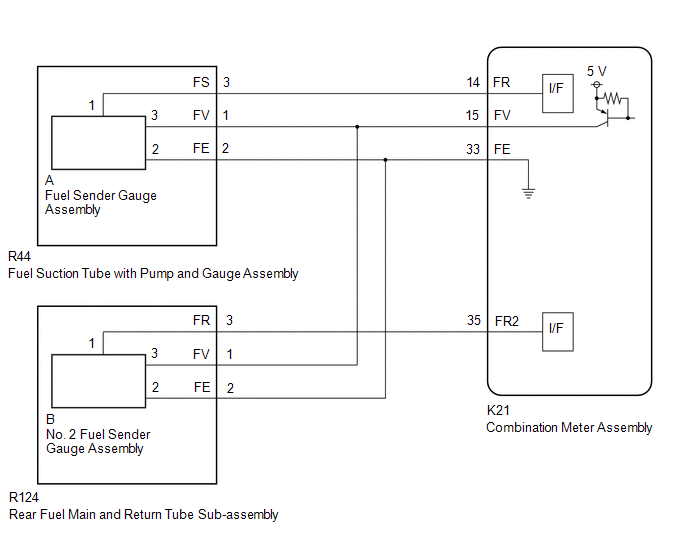

  2. FOR AWD
    GTY983025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
