Removal [06/2017 - 10/2020]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [06/2017 - 10/2020]

  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 3

  4. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE METER MIRROR SUB-ASSEMBLY
    1. Remove the 3 screws and meter mirror sub-assembly.

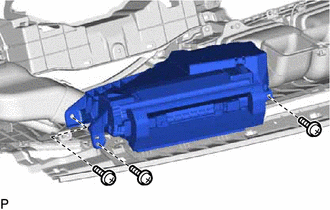

      GTY752599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
