Components [03/2017 - ]

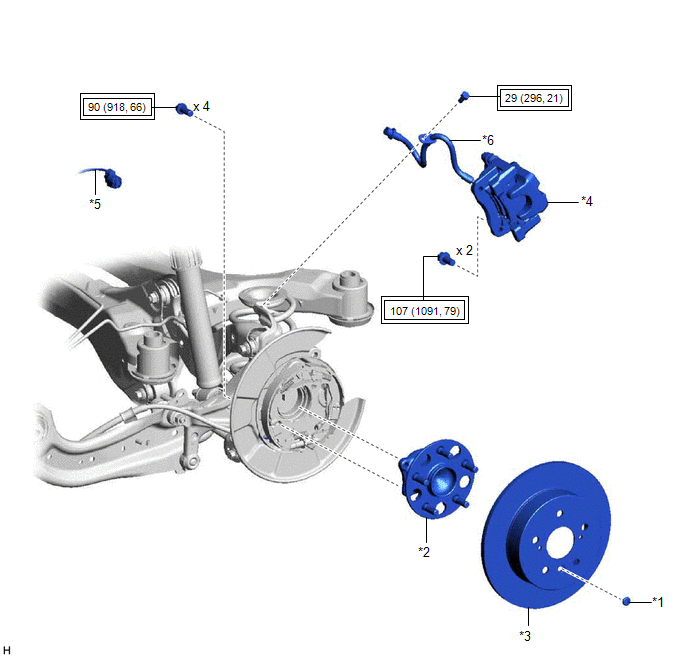

Fig 1: Rear Axle Hub (For 2WD Without Electric Parking Brake System) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY |
| *5 | SKID CONTROL SENSOR WIRE | *6 | REAR FLEXIBLE HOSE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
