On-Vehicle Inspection [06/2017 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 15

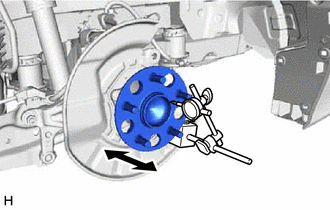

1. Using a dial indicator with magnetic base, check for looseness near the center of the rear axle hub.

   Maximum Looseness

   0.05 mm (0.00196 in.)

   NOTE:

   • Ensure that the dial indicator is set perpendicular to the measurement surface.
   • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

   HINT:

   If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

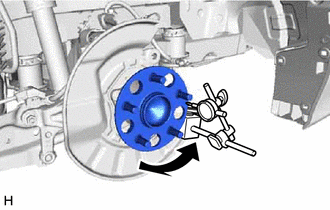

1. Using a dial indicator with magnetic base, check for runout on the surface of the rear axle hub outside the rear axle hub bolts.

   Maximum Runout

   0.05 mm (0.00196 in.)

   NOTE:

   • Ensure that the dial indicator is set perpendicular to the measurement surface.
   • Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolts.
   • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

   HINT:

   If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
