Components [06/2017 - ]

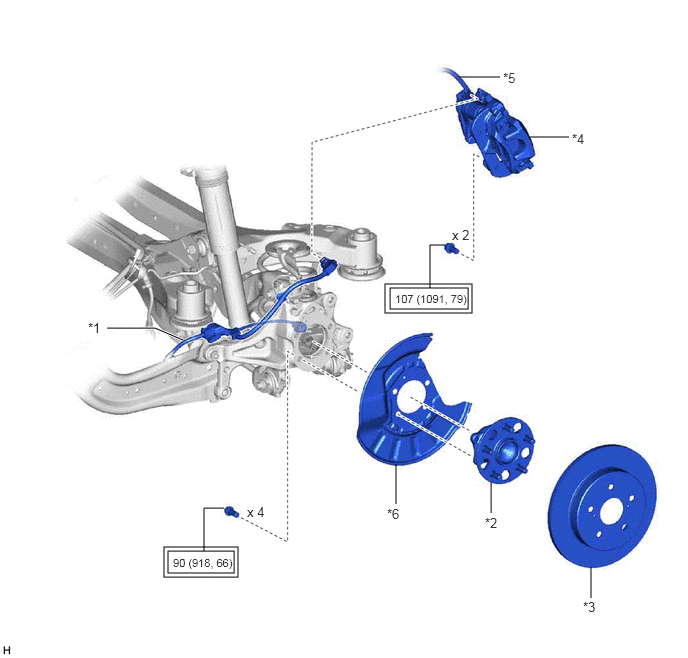

Fig 1: Rear Axle Hub (For 2WD With Electric Parking Brake System) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
