Reassembly [03/2020 - ]: Procedure
- INSTALL OUTBOARD JOINT BOOT
- Wrap the splines of the rear drive outboard joint shaft assembly LH with protective tape to prevent the boot from being damaged.
- Install new parts to the rear drive outboard joint shaft assembly LH in the following order:
*1 Rear Drive Outboard Joint Shaft Assembly LH *2 Rear No. 2 Drive Shaft Outboard Joint Boot Clamp LH *3 Outboard Joint Boot *4 Rear Drive Shaft Outboard Joint Boot Clamp LH Outboard Joint Side Inboard Joint Side - Rear No. 2 drive shaft outboard joint boot clamp LH
- Outboard joint boot
- Rear drive shaft outboard joint boot clamp LH
- Pack the joint portion of the rear drive outboard joint shaft assembly LH and outboard joint boot with grease.
Standard Grease Capacity
37 to 47 g (1.31 to 1.65 oz.)
- Install the outboard joint boot to the rear drive outboard joint shaft assembly LH groove.NOTE:
- Do not allow grease to adhere to the boot clamp track of the outboard joint boot.
- Keep the inside of the outboard joint boot free of foreign matter.
- INSTALL REAR NO. 2 DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH WARNING:
- INSTALL REAR DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH
- Install the rear drive shaft outboard joint boot clamp LH onto the outboard joint boot.

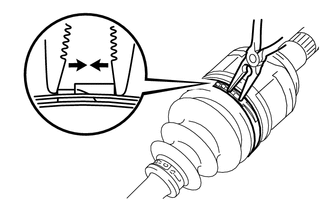

- Place SST onto the rear drive shaft outboard joint boot clamp LH.
*a Turn *b Hold - SST: 09521-24010
- Tighten SST so that the rear drive shaft outboard joint boot clamp LH is pinched.NOTE:
- Do not overtighten SST.
- Be careful not to damage the outboard joint boot.
- Using SST, measure the clearance of the rear drive shaft outboard joint boot clamp LH.
- SST: 09240-00021
Standard Clearance
1.2 mm (0.0472 in.) or less
NOTE:If the measured value exceeds the specified value, retighten the rear drive shaft outboard joint boot clamp LH.
- INSTALL REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY LH
- Wrap the spline of the rear drive outboard joint shaft assembly LH with protective tape to prevent the boot from being damaged.
*1 Rear Drive Shaft Inboard Joint Boot Clamp LH *2 Inboard Joint Boot *3 Rear No. 2 Drive Shaft Inboard Joint Boot Clamp LH *a Protective Tape Outboard Joint Side Inboard Joint Side Install new parts to the rear drive outboard joint shaft assembly LH in the following order.
- Rear drive shaft inboard joint boot clamp LH
- Inboard joint boot
- Rear No. 2 drive shaft inboard joint boot clamp LH
- Remove the protective tape from the rear drive outboard joint shaft assembly LH.
- Align the matchmarks and place the beveled side of the tripod joint axial spline toward the rear drive outboard joint shaft assembly LH.
*a Matchmark NOTE:Face the serrated side of the tripod joint outward and install it to the outboard joint end.
- Using a brass bar and hammer, tap the tripod joint onto the rear drive outboard joint shaft assembly LH.NOTE:
- Do not tap the rollers.
- Be sure to install the tripod joint in the correct direction.
- Using a snap ring expander, install a new rear drive shaft snap ring LH.
- Pack the rear drive shaft inboard joint assembly LH and inboard joint boot with grease from the boot kit.
Standard Grease Capacity
88 to 98 g (3.11 to 3.45 oz.)
- Align the matchmarks and install the rear drive shaft inboard joint assembly LH to the rear drive outboard joint shaft assembly LH.
*a Matchmark
- INSTALL INBOARD JOINT BOOT
- Install the inboard joint boot to the rear drive shaft inboard joint assembly LH.
- Check whether the drive shaft dimension (A) is within specification.
Length (A)
749.1 to 759.1 mm (2.46 to 2.49 ft.)
NOTE:Keep the drive shaft assembly level during inspection.
If the boots are stretched or contracted, correct them.
- INSTALL REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH
- For Type A:
- For Type B:
- INSTALL REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH
HINT:
Use the same procedure described for the rear No. 2 drive shaft inboard joint boot clamp LH.
- INSPECT REAR DRIVE SHAFT
Refer to INSPECTION [03/2020 - ]
