Installation [03/2020 - ]: Procedure

1. Install a new rear drive shaft inboard joint shaft snap ring LH.

1. Coat the splines of the rear drive shaft inboard joint assembly LH with Toyota genuine differential gear oil LT 75W-85 API GL-5.
2. Coat the rear drive shaft inboard joint shaft snap ring LH of the rear drive shaft inboard joint assembly LH with MP grease.

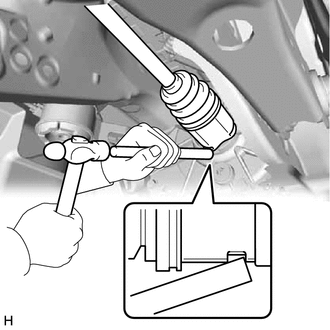

3. Align the inboard joint splines, and using a brass bar and a hammer, install the rear drive shaft assembly LH.
   NOTE:

   • Face the end gap of the rear drive shaft inboard joint shaft snap ring LH downward.
   • Do not damage the rear drive shaft oil seal.
   • Do not damage the inboard joint boot.
   • Make sure to center the rear drive shaft assembly LH during installation to prevent damage to the rear drive shaft inboard joint shaft snap ring LH.

   HINT:

   Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [03/2020 - 10/2020] , or refer to INSTALLATION [10/2020 - ]

Refer to INSTALLATION [06/2017 - ]
