Disassembly [03/2020 - ]: Procedure

  1. REMOVE REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH
    1. For Type A:
      1. Using needle-nose pliers, remove the rear No. 2 drive shaft inboard joint boot clamp LH as shown in the illustration.
        GTY243591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For Type B:
      1. Using needle-nose pliers, remove the rear No. 2 drive shaft inboard joint boot clamp LH as shown in the illustration.
        GTY934034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH

    HINT:

    Use the same procedure described for the rear No. 2 drive shaft inboard joint boot clamp LH.

  3. DISCONNECT INBOARD JOINT BOOT
    1. Disconnect the inboard joint boot from the rear drive shaft inboard joint assembly LH.
  4. REMOVE REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY LH
    GTY381038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Matchmark
    1. Remove any old grease from the rear drive shaft inboard joint assembly LH.
    2. Put matchmarks on the rear drive shaft inboard joint assembly LH and rear drive outboard joint shaft assembly LH.
      NOTE:

      Do not use a punch to make the matchmarks.

    3. Remove the rear drive shaft inboard joint assembly LH from the rear drive outboard joint shaft assembly LH.

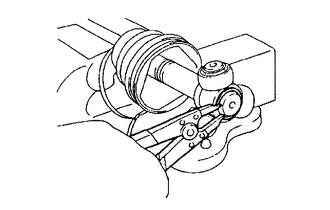

    4. Using a snap ring expander, remove the rear drive shaft snap ring LH.
      GTY445530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. GTY378471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark

      Put matchmarks on the rear drive outboard joint shaft assembly LH and tripod joint.

      NOTE:

      Do not use a punch to make the matchmarks.

    6. Using a brass bar and hammer, remove the tripod joint from the rear drive outboard joint shaft assembly LH.
      NOTE:
      • Do not tap the rollers.
      • Do not drop the tripod joint.
    7. Remove the inboard joint boot.
  5. REMOVE REAR NO. 2 DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH
    GTY371380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, remove the rear No. 2 drive shaft outboard joint boot clamp LH as shown in the illustration.
  6. REMOVE REAR DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH
    GTY371377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using pliers, remove the rear drive shaft outboard joint boot clamp LH as shown in the illustration.
  7. REMOVE OUTBOARD JOINT BOOT
    1. Remove the outboard joint boot from the rear drive outboard joint shaft assembly LH.
    2. Remove any old grease from the rear drive outboard joint shaft assembly LH.
