Components [03/2020 - ]

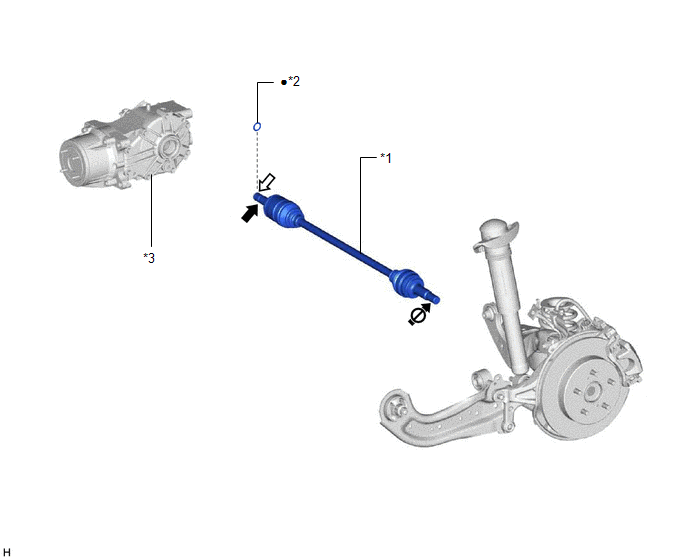

| *1 | REAR DRIVE SHAFT ASSEMBLY LH | *2 | REAR DRIVE SHAFT INBOARD JOINT SHAFT SNAP RING LH |
| *3 | REAR DIFFERENTIAL CARRIER ASSEMBLY | - | - |
| Toyota Genuine Differential Gear Oil LT 75W-85 API GL-5 | MP grease | ||
| Do not apply lubricants to the threaded parts | • | Non-reusable part |

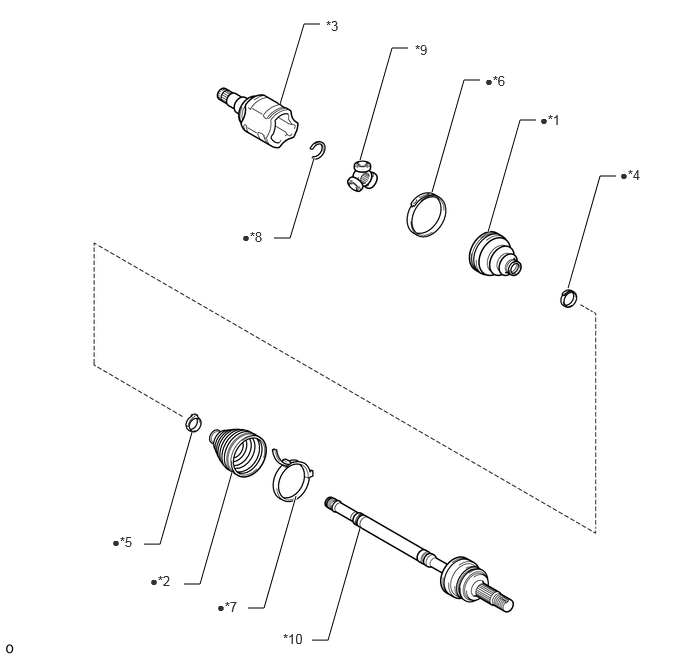

| *1 | INBOARD JOINT BOOT | *2 | OUTBOARD JOINT BOOT |
| *3 | REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY LH | *4 | REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH |
| *5 | REAR DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH | *6 | REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH |
| *7 | REAR NO. 2 DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH | *8 | REAR DRIVE SHAFT SNAP RING LH |
| *9 | TRIPOD JOINT | *10 | REAR DRIVE OUTBOARD JOINT SHAFT ASSEMBLY LH |
| • | Non-reusable part | - | - |
