Components [03/2020 - ]

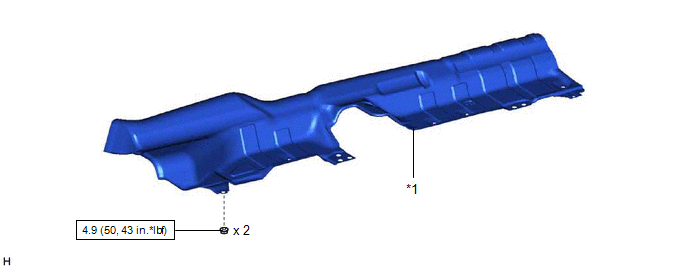

Fig 1: Propeller Shaft Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT LOWER NO. 1 FLOOR HEAT INSULATOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

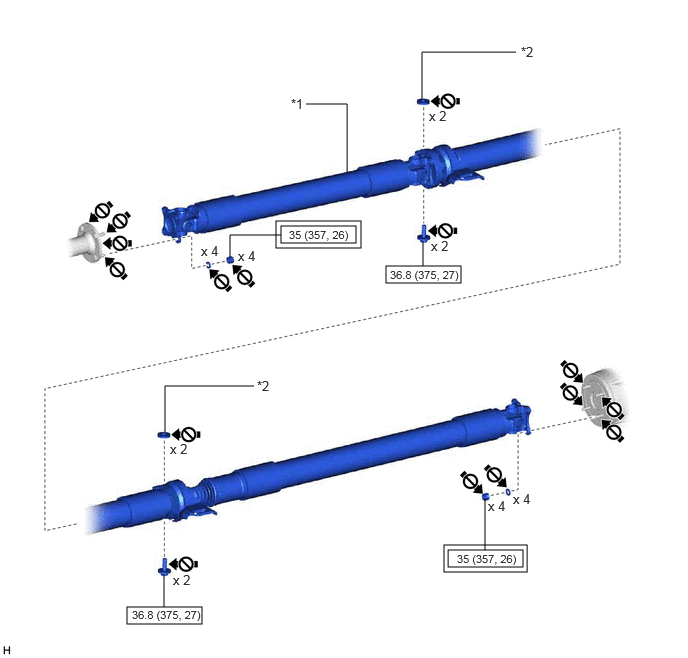

Fig 2: Propeller Shaft Assembly Replacement Components With Torque Specifications (2 Of 3)

Callout	Description	Callout	Description
*1	PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY	*2	CENTER NO. 2 SUPPORT BEARING WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque
	Do not apply lubricants	-	-

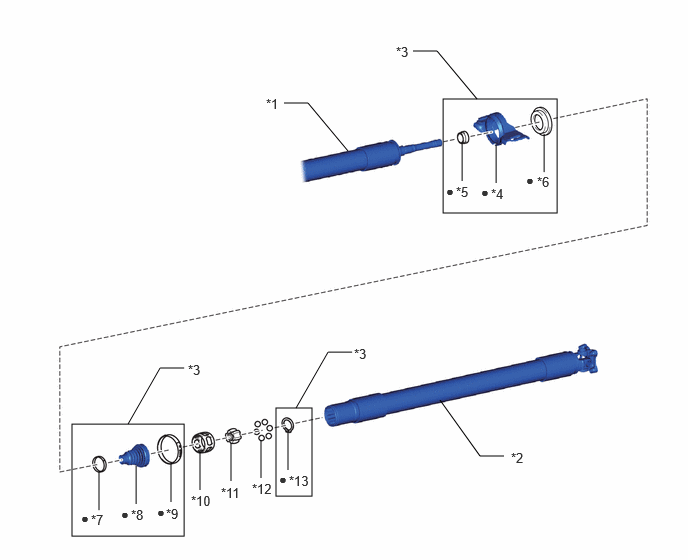

Fig 3: Propeller Shaft Assembly Replacement Components (3 Of 3)

*1	PROPELLER INTERMEDIATE SHAFT ASSEMBLY	*2	REAR PROPELLER SHAFT ASSEMBLY
*3	UNIVERSAL BOOT KIT	*4	CENTER SUPPORT BEARING
*5	NO. 1 DUST DEFLECTOR	*6	FLANGE
*7	SMALL DIAMETER PROPELLER SHAFT BOOT CLAMP	*8	PROPELLER SHAFT BOOT
*9	LARGE DIAMETER PROPELLER SHAFT BOOT CLAMP	*10	BALL CAGE
*11	INNER RACE	*12	BALL
*13	PROPELLER SHAFT SNAP RING	-	-
•	Non-reusable part	-	-
