Components [06/2017 - ]

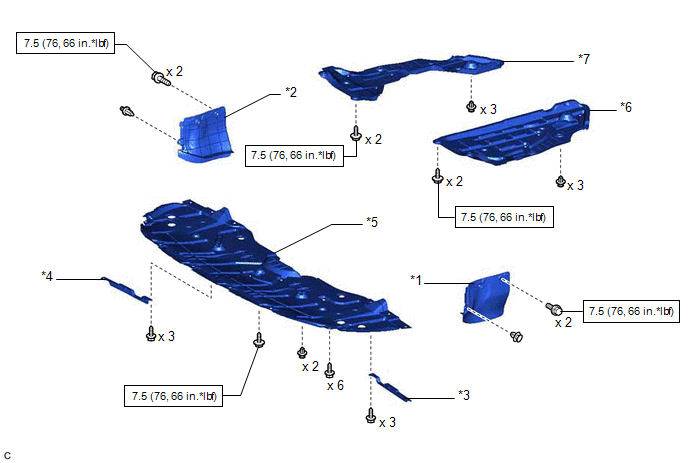

Fig 1: Front Drive Shaft Assembly (For 2GR-FKS) Replacement Components With Torque Specifications (1 Of 5)
| Callout | Description | Callout | Description |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FENDER APRON SEAL RH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | NO. 1 ENGINE UNDER COVER | *6 | REAR ENGINE UNDER COVER LH |
| *7 | REAR ENGINE UNDER COVER RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

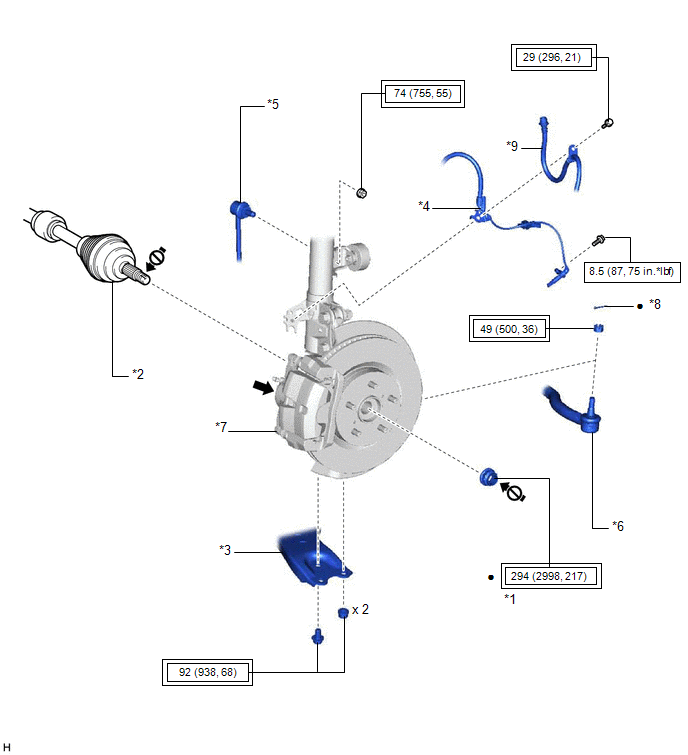

Fig 2: Front Drive Shaft Assembly (For 2GR-FKS) Replacement Components With Torque Specifications (2 Of 5)
| Callout | Description | Callout | Description |
| *1 | FRONT AXLE SHAFT NUT | *2 | FRONT DRIVE SHAFT ASSEMBLY |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | *4 | FRONT SPEED SENSOR |
| *5 | FRONT STABILIZER LINK ASSEMBLY | *6 | TIE ROD ASSEMBLY |
| *7 | FRONT AXLE ASSEMBLY | *8 | COTTER PIN |
| *9 | FRONT FLEXIBLE HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | Toyota Body Grease W | |
| Do not apply lubricants to the threaded parts | - | - |

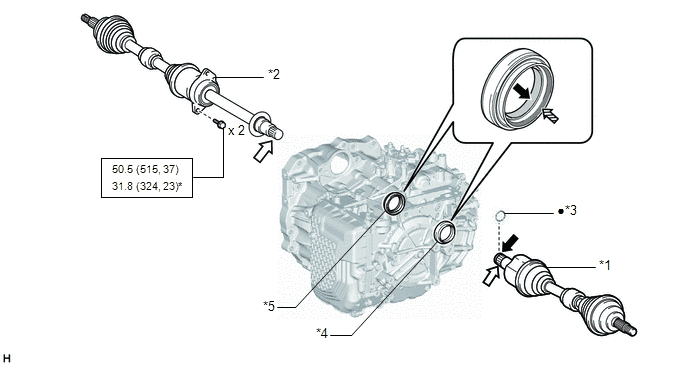

Fig 3: Front Drive Shaft Assembly (For 2GR-FKS) Replacement Components With Torque Specifications (3 Of 5)
| Callout | Description | Callout | Description |
| *1 | FRONT DRIVE SHAFT ASSEMBLY LH | *2 | FRONT DRIVE SHAFT ASSEMBLY RH |
| *3 | FRONT DRIVE SHAFT HOLE SNAP RING | *4 | FRONT DRIVE SHAFT OIL SEAL LH |
| *5 | FRONT DRIVE SHAFT OIL SEAL RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | MP grease | |
| Toyota Genuine ATF WS | Toyota Genuine Oil Seal Side Lip Grease |

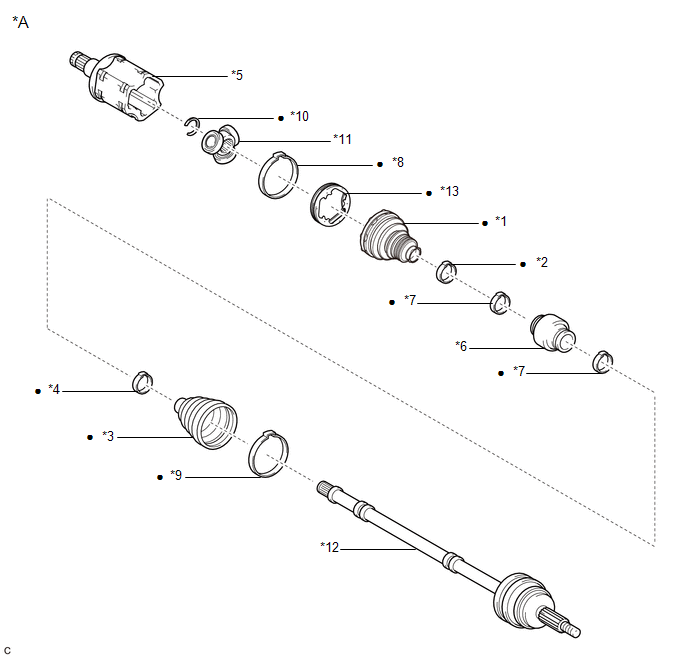

| *A | For LH Side | - | - |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT DAMPER |
| *7 | FRONT DRIVE SHAFT DAMPER CLAMP | *8 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP |
| *9 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP | *10 | SHAFT SNAP RING |
| *11 | TRIPOD JOINT | *12 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| *13 | FRONT AXLE INBOARD JOINT GROMMET | - | - |
| • | Non-reusable part | - | - |

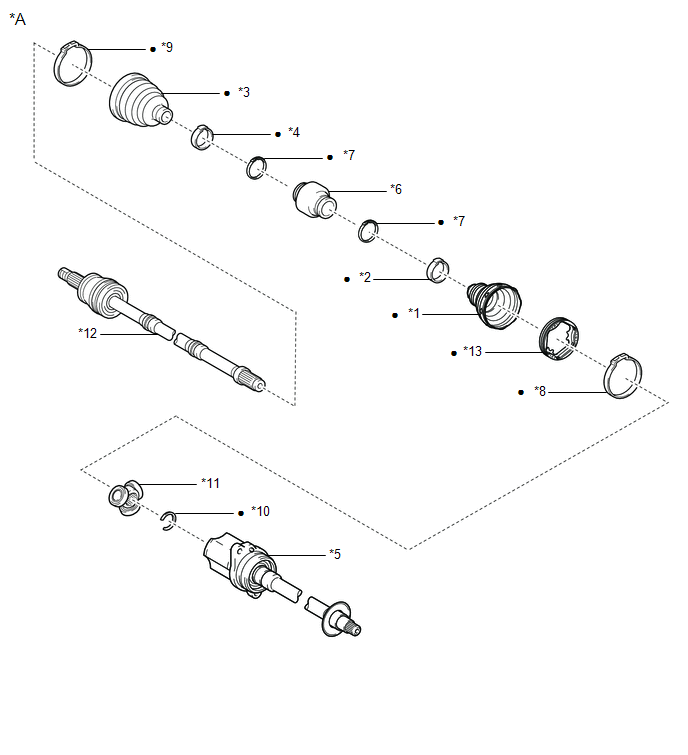

| *A | For RH Side | - | - |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT DAMPER |
| *7 | FRONT DRIVE SHAFT DAMPER CLAMP | *8 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP |
| *9 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP | *10 | SHAFT SNAP RING |
| *11 | TRIPOD JOINT | *12 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| *13 | FRONT AXLE INBOARD JOINT GROMMET | - | - |
| • | Non-reusable part | - | - |
