Components [03/2017 - ]
Fig 1: Rear Axle Carrier (For 2WD Without Electric Parking Brake System) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
| *A | for RH Side | *B | for LH Side |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

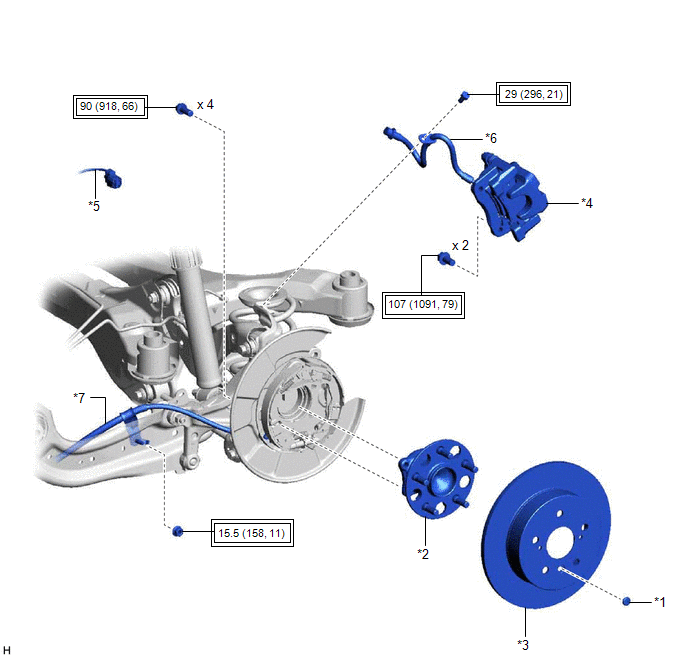

Fig 2: Rear Axle Carrier (For 2WD Without Electric Parking Brake System) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *2 | REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY |
| *5 | SKID CONTROL SENSOR WIRE | *6 | REAR FLEXIBLE HOSE |
| *7 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

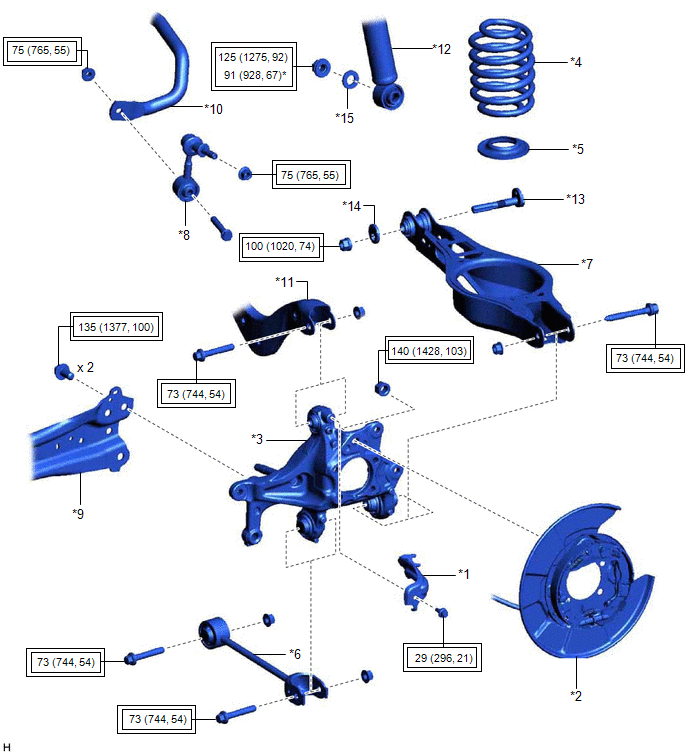

Fig 3: Rear Axle Carrier (For 2WD Without Electric Parking Brake System) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR FLEXIBLE HOSE BRACKET | *2 | PARKING BRAKE ASSEMBLY |
| *3 | REAR AXLE CARRIER SUB-ASSEMBLY | *4 | REAR COIL SPRING |
| *5 | REAR LOWER COIL SPRING INSULATOR | *6 | REAR NO. 1 SUSPENSION ARM ASSEMBLY |
| *7 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *8 | REAR STABILIZER LINK ASSEMBLY |
| *9 | REAR TRAILING ARM ASSEMBLY | *10 | REAR STABILIZER BAR |
| *11 | REAR UPPER CONTROL ARM ASSEMBLY | *12 | REAR SHOCK ABSORBER ASSEMBLY |
| *13 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *14 | NO. 2 CAMBER ADJUST CAM |
| *15 | PLATE WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |
