DTC P0571-11: Brake Switch "A" Circuit Short to Ground [10/2020 - 08/2021]: Wiring Diagram

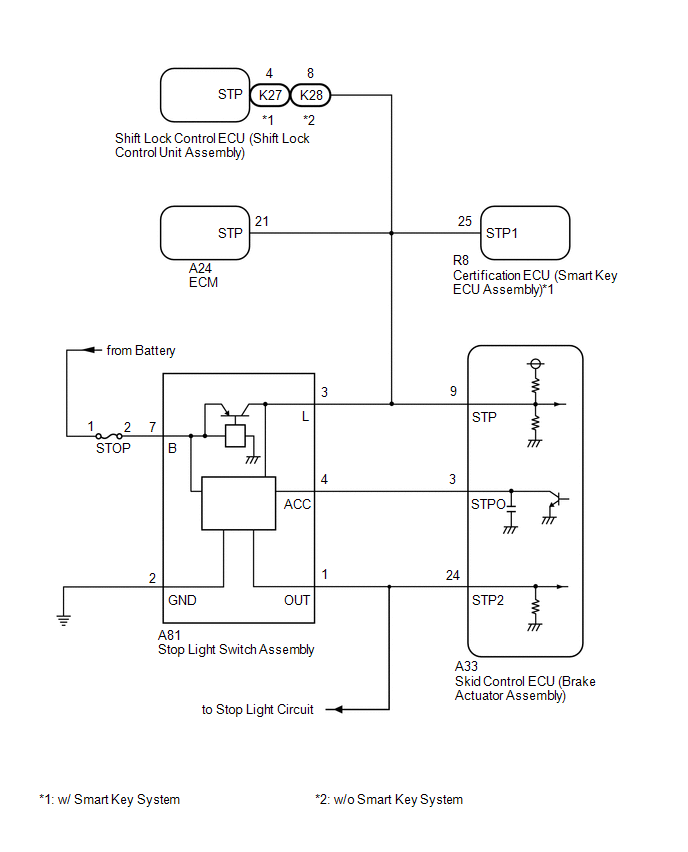

w/ Pre-collision System

GTY973530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

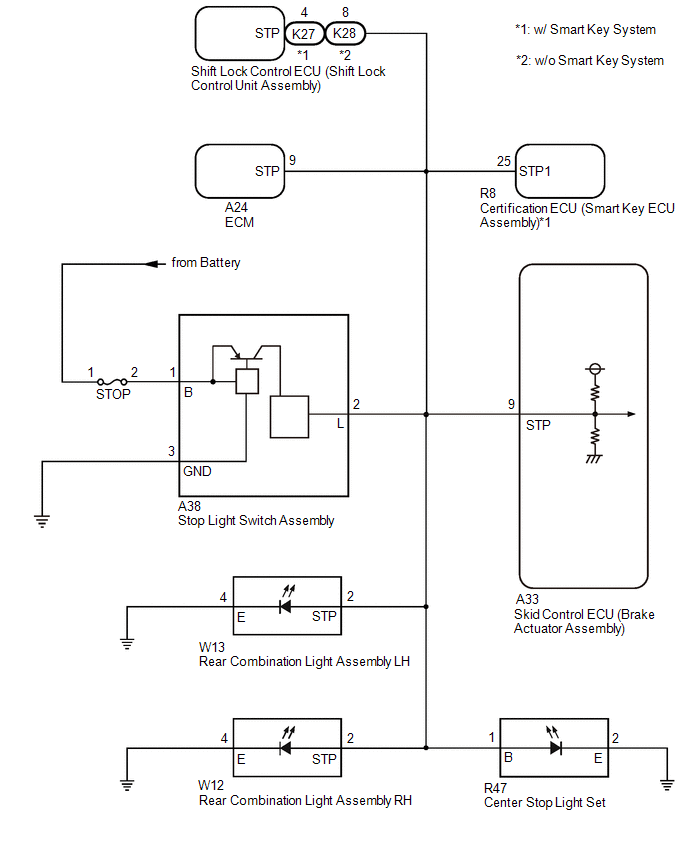

w/o Pre-collision System

GTY978755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
