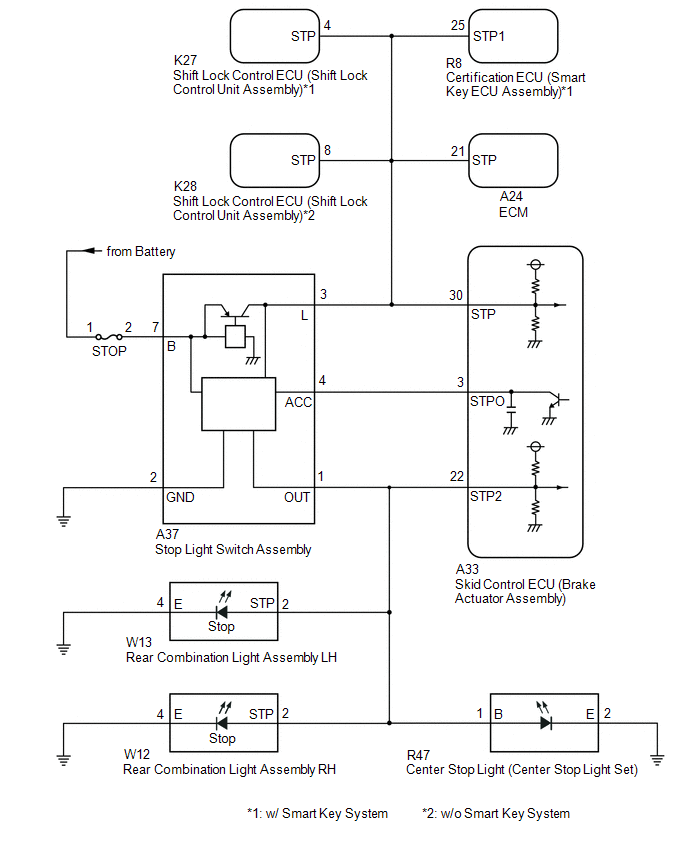

DTC C1380: Stop Light Control Relay Malfunction [06/2017 - 10/2020]: Wiring Diagram

GTY769584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
