DTC C1249: Open in Stop Light Switch Circuit [06/2017 - 10/2020]: Wiring Diagram

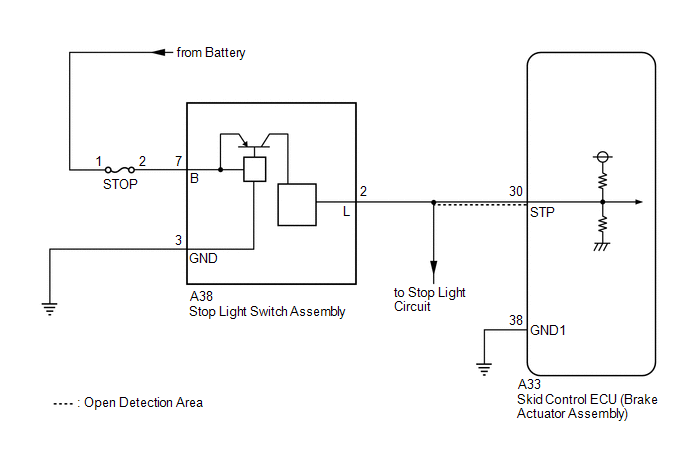

w/o Pre-collision System:

GTY765826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

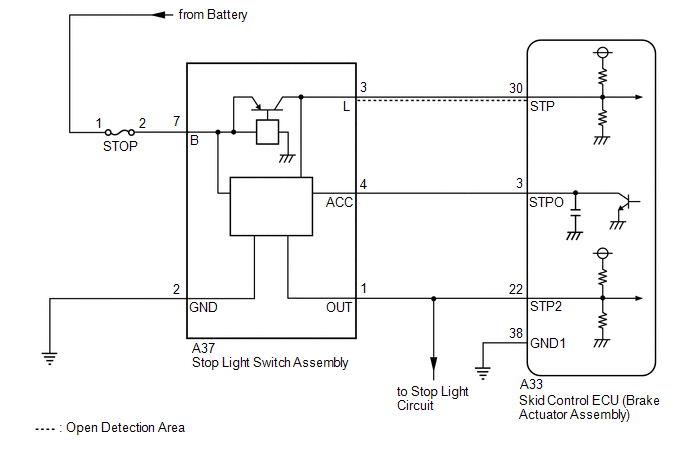

w/ Pre-collision System:

GTY753290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
