Vehicle Stability Control System (W/O Electric Parking Brake System) - Diagnostic Codes (2 Of 3) (Except Hybrid)
>>
VEHICLE STABILITY CONTROL SYSTEM (w/o Electric Parking Brake System)
>>
DTC C1234: Yaw Rate Sensor; DTC C1472: Acceleration Sensor; DTC C1474: Forward and Rearward G Sensor [06/2017 - 10/2020]
>>

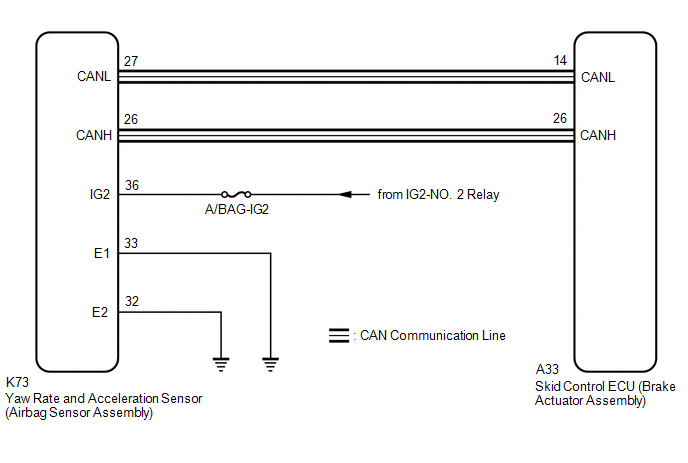

Wiring Diagram
DTC C1234: Yaw Rate Sensor; DTC C1472: Acceleration Sensor; DTC C1474: Forward and Rearward G Sensor [06/2017 - 10/2020]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
