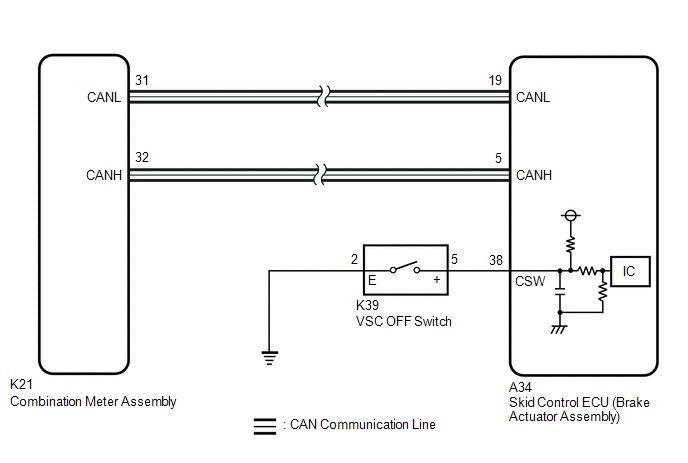

VSC OFF Switch Circuit [10/2020 - ]: Wiring Diagram

GTY972886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
