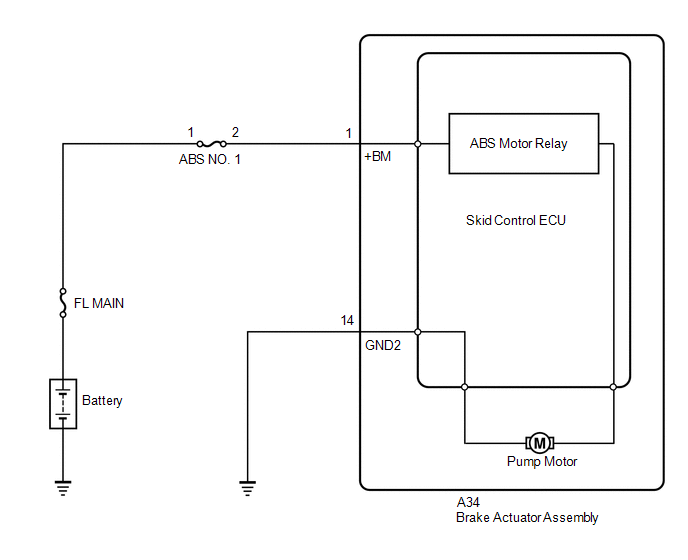

DTC C146C: Open in ABS Motor Relay Circuit [06/2017 - 10/2020]: Wiring Diagram

GTY755177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
