Home >> Toyota >> 2021 >> Camry LE, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Stability Control System (W/ Electric Parking Brake System) - Diagnostic Codes (3 Of 4) (Except Hybrid) >> VEHICLE STABILITY CONTROL SYSTEM (w/ Electric Parking Brake System) >> DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [08/2021 - ] >> Wiring Diagram

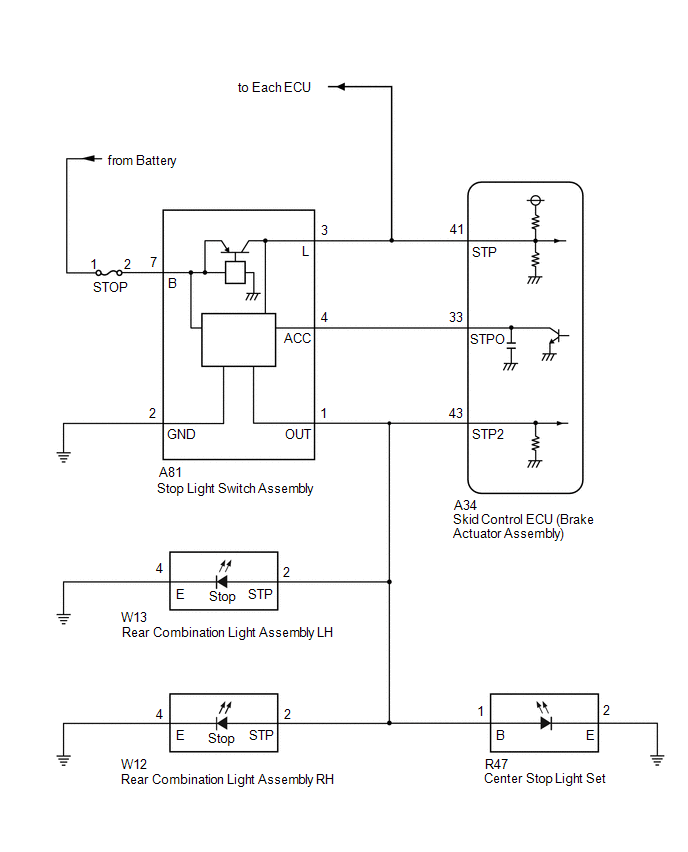

DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [08/2021 - ]: Wiring Diagram

GTY973028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
