DTC C0512-12: Right Rear Wheel Speed Sensor Circuit Short to Battery [10/2020 - ]: Wiring Diagram

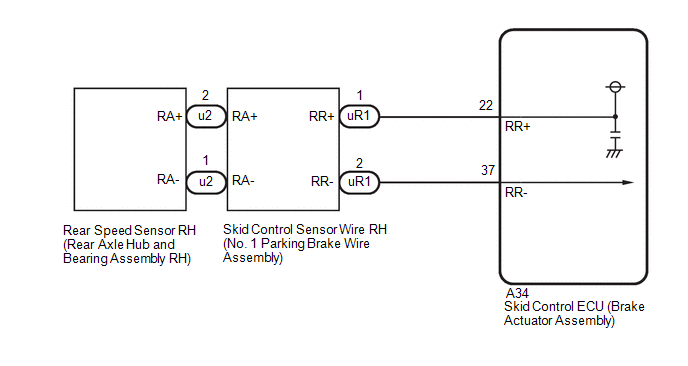

for 2WD

GTY1099101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

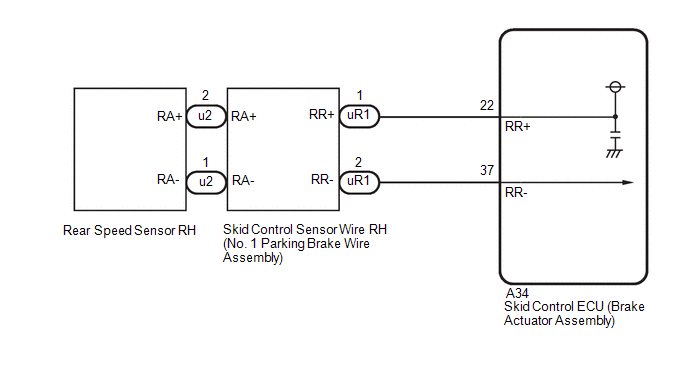

for AWD

GTY1102382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
