DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery [10/2020 - ]: Wiring Diagram

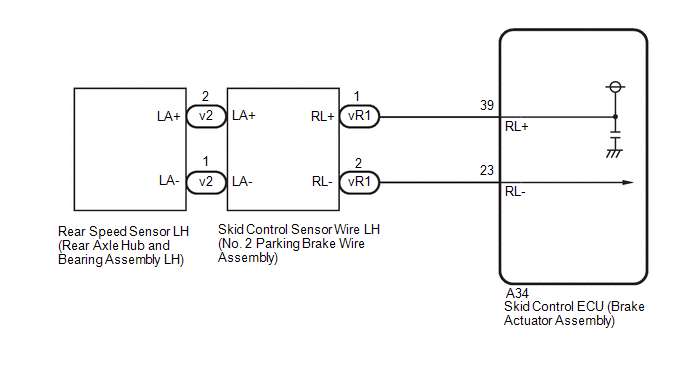

for 2WD

GTY1099095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

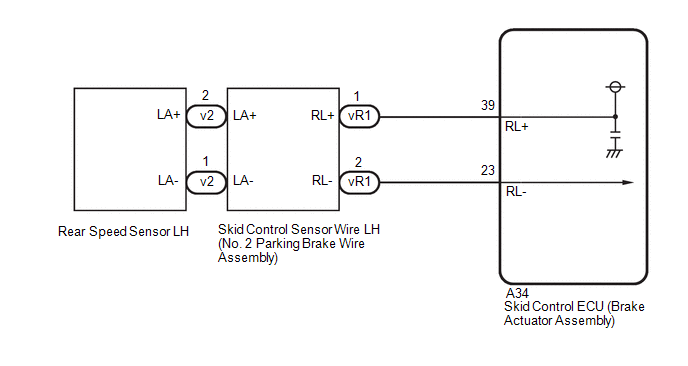

for AWD

GTY1099100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
